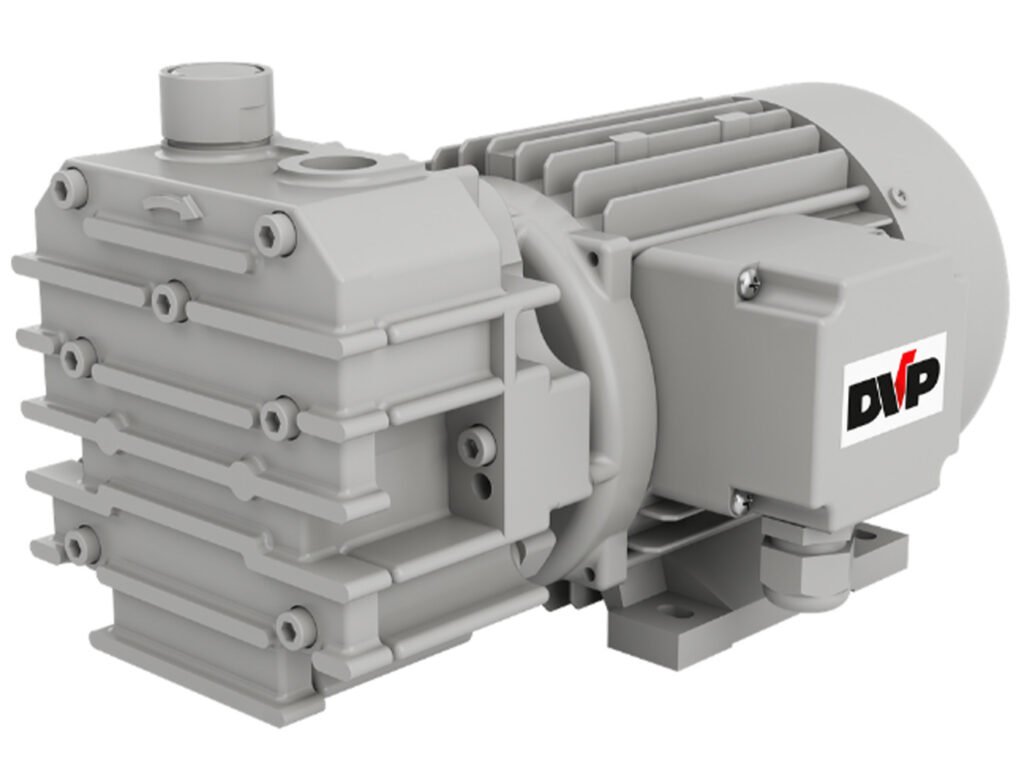

DVP SB Series Oil-Free Rotary Vane Vacuum Pump
Dry running pump with capacities up to 8.2 CFM and up to 90 Torr vacuum
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DVP SB Series Oil-Free Rotary Vane Vacuum Pump features a monoblock industrial design type with the rotor directly assembled on the motor shaft. Built with lightweight alloy, the pumps can be fitted in places where little space is available and has adequate ventilation. The SB Series pumps are cooled by the motor fan and are made up of a cylindrical body and a rotor that rotates eccentrically inside it. The rotor has grooves where the vanes are placed. As the rotor turns, the centrifugal force pushes the vanes into contact with the body. This creates small spaces that increase in volume, allowing air from the container to be drawn in and expelled through the outlet duct. The SB Series is capable of running continuously at both atmospheric pressure and the highest vacuum.
Note: The SB Series cannot be used when the aspirated air contains moisture, oil, or other traces of liquid.
Applications:
- Food and beverage
- Construction industry
- Packaging
- Plastic
- Rubber
- Resin
- Analytical field
- Printing
- Paper industry
- Silk-screen printing
- Wood presses
- Suction lifting machines
- Pollutant sampling and analysis
Overview and Features
Features
- 7.1 to 8.2 CFM nominal capacities available
- 0.6 HP
- 90 Torr vacuum
- Protective filter at the inlet
- Silencer at the outlet
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.6 HP |
|---|---|
| Flow Rate | 7.1 CFM, 8.2 CFM |
| Voltage | 220-240/1/50-60, 175-300/300-520/50-60, UL S3 175-300/300-520/50-60, IE2 230/400/50 265/460/60, UL 110/50-60 |
