Compressed Air Systems

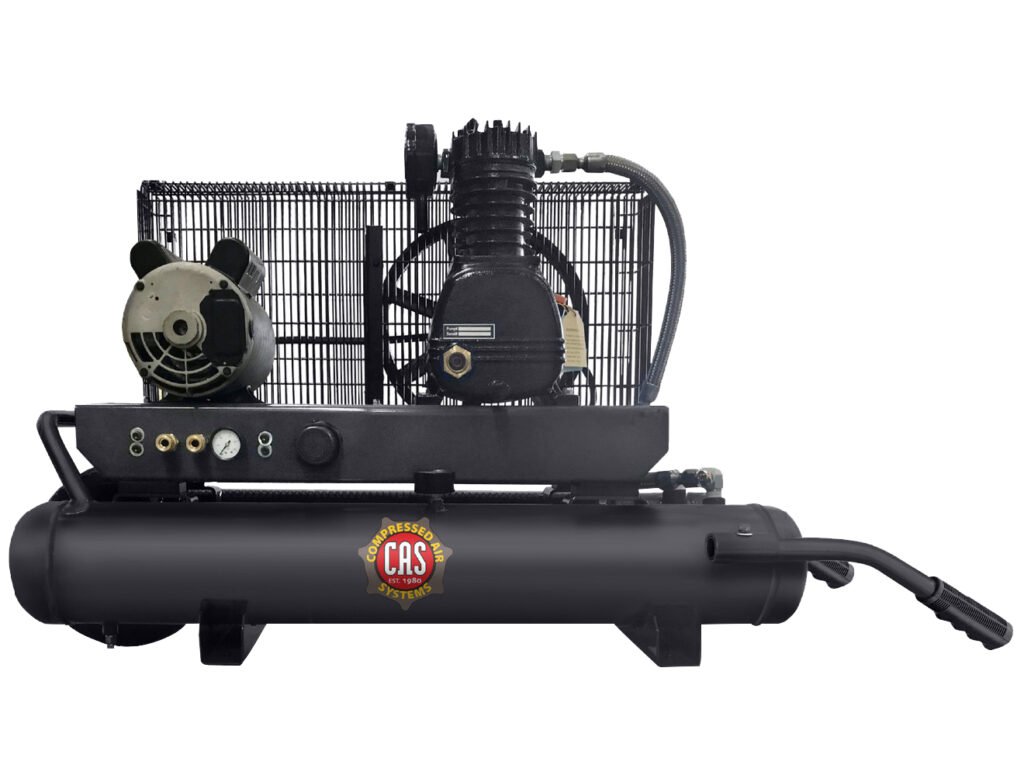

Compressed Air Systems Contractor Electric Series Portable Piston Air Compressor
Automatic start/stop; high CFM per HP ratio with max. 50% duty cycle
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems Contractor Electric Series Portable Piston Air Compressor is designed to provide all the power needed to complete location work, such as on a farm, ranch, or construction site. The tank-mounted compressor is available with a portable or twin tank type.
Overview and Features
Features
- 11 to 18 CFM
- 20 CFM free air
- 2, 3 or 5 HP
- 135 PSI pressure rating
- 115 or 208-230/1 voltage rating
- 10 or 20gal tank; portable or twin type
- Dual control operation
- Industrial grade electric motor
- Fully enclosed belt guard
- Low profile design
- Low RPM pump
- UL electrical controls
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP |
|---|---|
| Tank Size | 20 gallon, portable, 10 gallon, twin |
| Voltage | 115/1/60, 208-230/1/60 |
