Champion

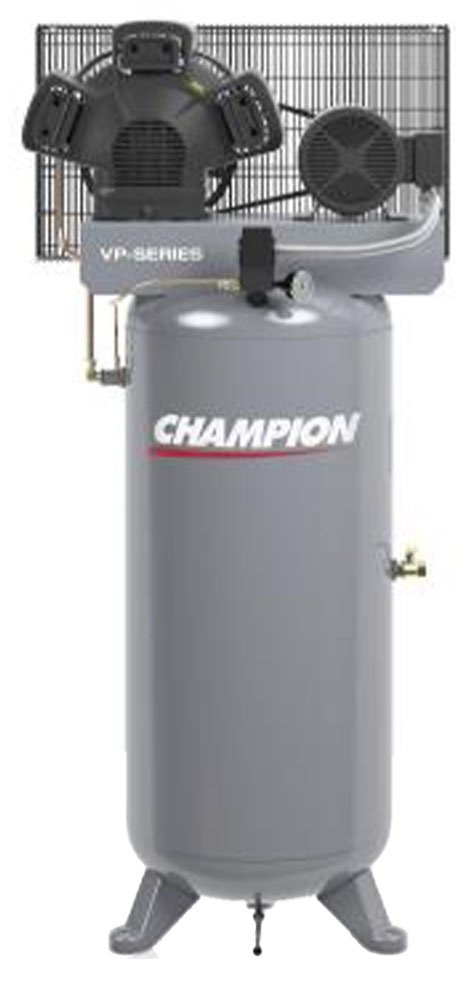

Champion VP-Series Splash Lubricated Piston Air Compressor
5 and 7.5 HP, 11.4 to 22.7 CFM, single or two-stage pumps, vertical air receiver tank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion VP-Series Splash Lubricated Piston Air Compressor is engineered for light industrial applications. Each compressor was designed with high quality bearings, cast iron cylinders, and vibration free compressor pumps to ensure longevity of the compressor package.
Overview and Features
Features
- 5 and 7.5 HP models
- 5 HP capacity:
- 11.4 CFM at 125 PSIG (single-stage)
- 15.2 CFM at 150 PSIG (two-stage)
- 7.5 HP capacity:
- 22.7 CFM at 150 PSIG (two-stage)
- Splash Lubricated
- Vertical Air Receiver Tank
- Oil Level Sight Glass
- Pressure Relief Valves
- Large Flywheel Blades
- Deep Finned Intercooler
- Industrial Grade Intake Filter and Silencer
- Factory filled with lubricant
- 1-Year compressor pump warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP |
|---|---|
| Capacity | 11.4 CFM at 125 PSIG, 15.2 CFM at 150 PSIG, 22.7 CFM at 150 PSIG |
| Tank Size | 60 gallon, 80 gallon |
| Voltage | 230/1/60, 230/3/60, 460/3/60 |
