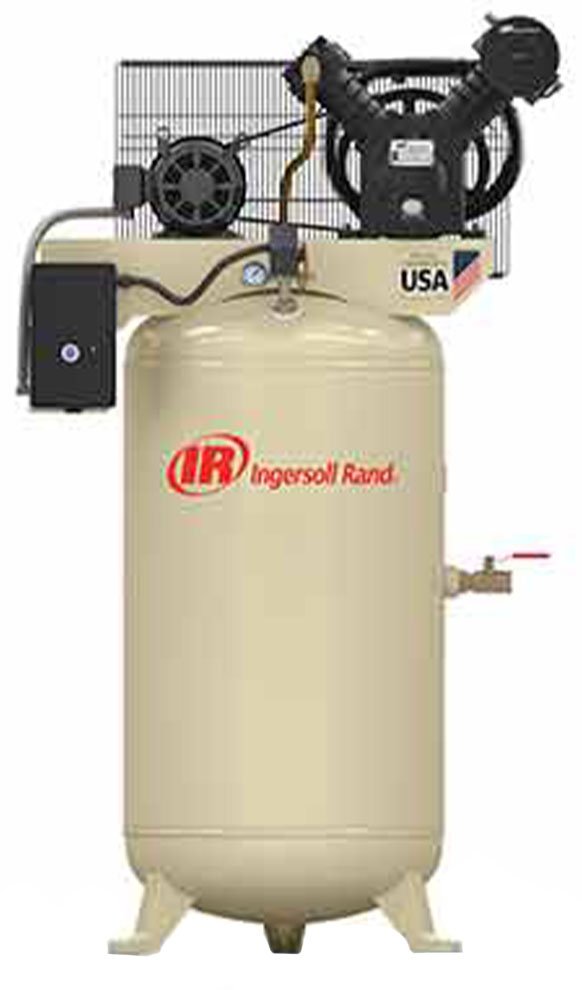

Ingersoll Rand 5-7.5 HP Two-Stage Piston Air Compressor
5 or 7.5 HP (Simplex), 10 or 15 HP (Duplex), 175 or 250 PSI max pressure, base mount or tank mount options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand 5-7.5 HP Two-Stage Piston Air Compressor is designed for heavy shop or industrial use, providing reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, woodworking shops, dry cleaners, car washes, general maintenance/repair shops, and farms.
Overview and Features
Features
- 5 or 7.5 HP (Simplex)
- 10 or 15 HP (Duplex)
- Capacities:
- 5 HP: 16.8 CFM at 175 PSI or 14.1 CFM at 250 PSI
- 7.5 HP: 24 or 26.6 CFM at 175 PSI
- 10 HP: 33.6 CFM at 175 PSI
- 15 HP: 48 or 53.2 CFM at 175 PSI
- Manual Tank Drain
- AS & S Control (2475 models)
- Dual Control (2545 models)
- NEMA 1 Electrics
- Enclosed Belt Guard
- Inlet Filter Standard Duty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP (two 5 HP), 15 HP (two 7.5 HP) |
|---|---|
| Capacity | 16.8 CFM at 175 PSI, 14.1 CFM at 250 PSI, 33.6 CFM at 175 PSI, 24 CFM at 175 PSI, 48 CFM at 175 PSI, 26.6 CFM at 175 PSI, 53.2 CFM at 175 PSI |
| Configuration | Base mount, 80 gallon tank mount, horizontal, 80 gallon tank mount, vertical, 120 gallon tank mount, horizontal, 120 gallon tank mount, vertical, 240 gallon tank mount, horizontal |
| Voltage | No motor, 200/3/60, 230/3/60, 460/3/60, 575/3/60, 200/1/60, 230/1/60 |
| Motor | None, Standard, TEFC |
| Low Oil Level Switch | None, Nema 1 Low Oil Level Switch, Nema 4 Low Oil Level Switch, Nema 7 Low Oil Level Switch |
| High Temp Air Switch | None, Add Nema 1 HT Air Switch, Add Nema 4 HT Air Switch |
| AS&S Control/Pressure Relief Valve | None, Add Nema 4 AS&S Control with Pressure Relief Valve, Add Nema 7 AS&S Control with Pressure Relief Valve |
| Drain Valve | Manual Drain Valve (Standard), Pneumatic Drain Valve, Electric Drain Valve |
| Starter (Simplex Models Only) | None, Nema 1 E-Series Starter, Nema 1 Deluxe Starter, Nema 4 Deluxe Starter |
| Alternator (Duplex Models Only) | None, Nema 1 E-Series Alternator, Nema 1 Deluxe Alternator, Nema 4 Deluxe Alternator |
| Additional Options | Inlet Filter Heavy Duty, Air Cooled Aftercooler, Install Kit, Adjustable Pressure Switch |
