Quincy Compressor

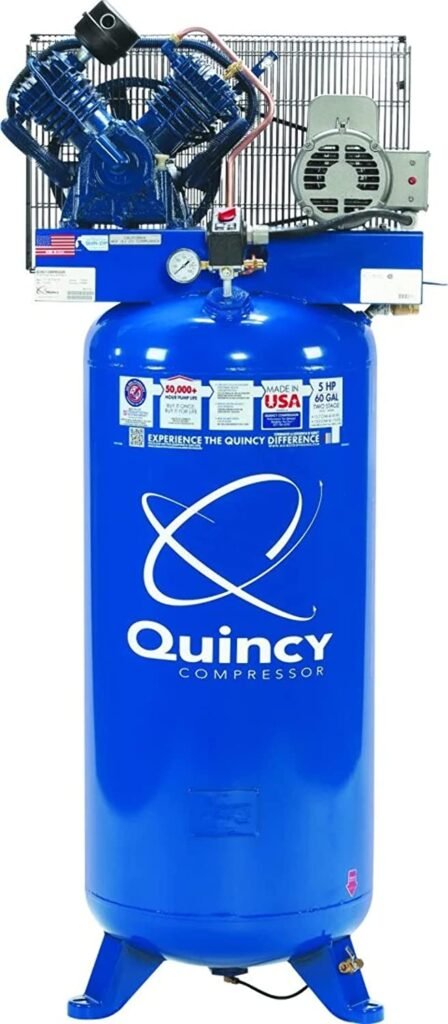

Quincy Compressor 2021116649 QT-54 Two Stage Piston Air Compressor
5 HP, 15.2 CFM at 175 PSI, splash lubricated, 60 gallon vertical air receiver tank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor 2021116649 QT-54 Two Stage Piston Air Compressor features heavy duty cast-iron construction makes the compressor ideal for tough working conditions. The QT Series features stainless steel reed valves with valve bumpers, industrial ball bearings, two-piece aluminum connecting rods, fin and tube intercooler, automotive style inlet filter/silencer, and a ductile iron, double throw crankshaft. The aluminum head dissipates heat to ensure the compressor is running as cool as possible while the valve design provides high volumetric efficiency. Automatic start/stop, ODP motor, motor overload protection, and a ball valve tank drain.
Overview and Features
Features
- 5 HP
- Capacity:
- 15.4 CFM at 100 PSI
- 15.2 CFM at 175 PSI
- 175 PSI max pressure
- 230/1/60 voltage
- 24 full load running amps
- 60 gallon vertical air tank (200 PSI max tank pressure)
- 50,000 hour estimated pump life
- 1/2” ball valve connection
- 30” x 23” x 70”
- 350 lbs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
