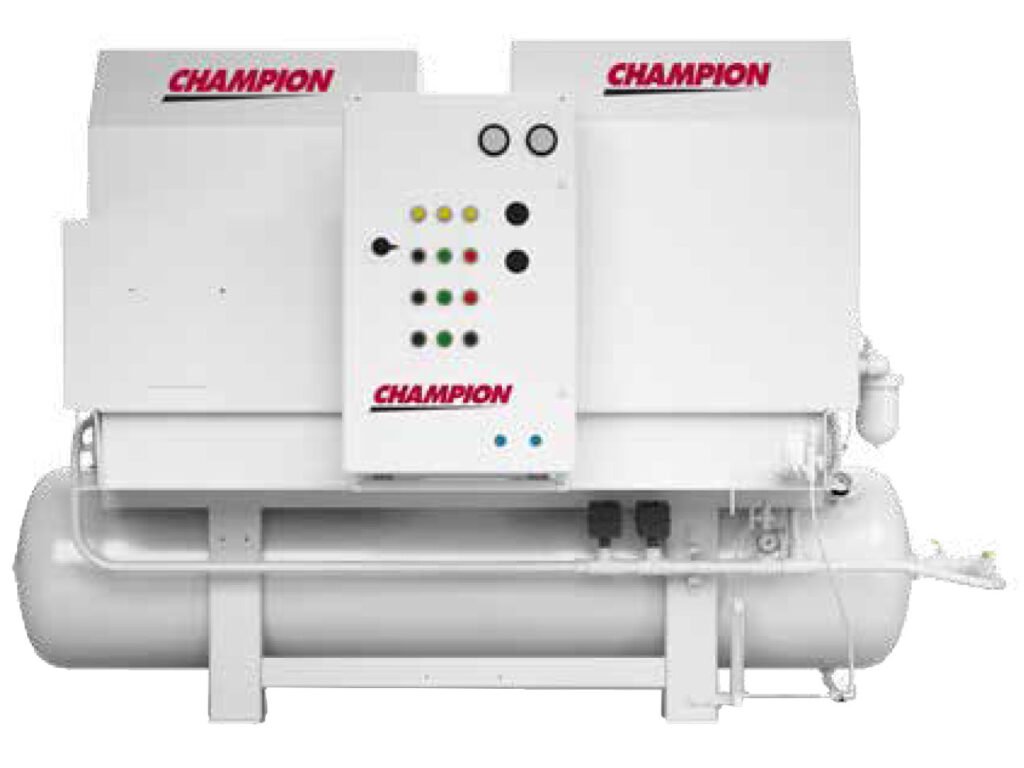

Champion V and W Series Oilless Piston Air Compressor
5 to 15 HP (Simplex) and 10 to 30 HP (Duplex) belt driven compressor, single or two stage, up to 138 ACFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion V and W Series Oilless Piston Air Compressor features Internal moving parts design that are protected from wear without conventional lubrication. Exclusive sealed, solid synthetic lubricants lubricate crankshaft and rod bearings. Pistons move on alloyed heat-resistant filled Teflon guide and compression rings.
Overview and Features
Features
- 5 to 15 HP (Simplex) and 10 to 30 HP (Duplex)
- 15.8 to 138 ACFM
- Up to 175 PSIG
- Single or Two Stage
- Air Cooled
- Tank or Base Mounted, Belt Driven
- 100% Duty Cycle
- Meets NFPA 99 Standard requirements
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 10 HP (Duplex - Two 5 HP Pumps), 15 HP (Duplex - Two 7.5 HP Pumps), 20 HP (Duplex - Two 10 HP Pumps), 30 HP (Duplex - Two 15 HP Pumps) |
|---|---|
| Number of Stages | Single stage, Two stage |
| Capacity | 16.8 ACFM at 100 PSI, 15.8 ACFM at 175 PSI, 33.6 ACFM at 100 PSI, 31.6 ACFM at 175 PSI, 25.9 ACFM at 100 PSI, 21.2 ACFM at 175 PSI, 51.8 ACFM at 100 PSI, 42.4 ACFM at 175 PSI, 35.2 ACFM at 100 PSI, 35.4 ACFM at 175 PSI, 70.4 ACFM at 100 PSI, 70.8 ACFM at 175 PSI, 56.5 ACFM at 100 PSI, 48.0 ACFM at 175 PSI, 113.0 ACFM at 100 PSI, 96.0 ACFM at 175 PSI |
| Configuration | Base mount, Cabinet mount- vertical, 120 gallon tank mount, 250 gallon tank mount |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 230/1/60 |
| Tank Lining/Coating Options | None, Vinyl lined, Galvanized Tank |
| Additional Options | Automatic Tank Drain - Electric, Automatic Tank Drain - Pneumatic, Dual Control, Continuous Run, Air Cooled After Cooler with Separator, High Temp Switch - NEMA 1, High Temp Switch - NEMA 4, Hour meter - NEMA 4, Remote Inlet Filter, Inlet Isolation Valve (Requires Remote Inlet Filter), Sound Attenuation Enclosure, Pressure Switch - NEMA 4 - P07333A, Unloader Solenoid - NEMA 4, Copper Intake Manifold, California Tank Code (Duplex), Massachusetts Fittings, Test-Off-Auto Switch (NEMA 1): for Start/Stop Control, Test-Off-Auto Switch (NEMA 4): for Start/Stop Control, Hand-Off-Auto Switch (NEMA 1): for Dual Control, Hand-Off-Auto Switch (NEMA 4): for Dual Control, Off-On Switch (NEMA 1), Off-On Switch (NEMA 4) |
