Compressed Air Systems
Compressed Air Systems Industrial Stationary Duplex Oilless Piston Air Compressor
Heavy duty single stage oil-free industrial duty pump
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

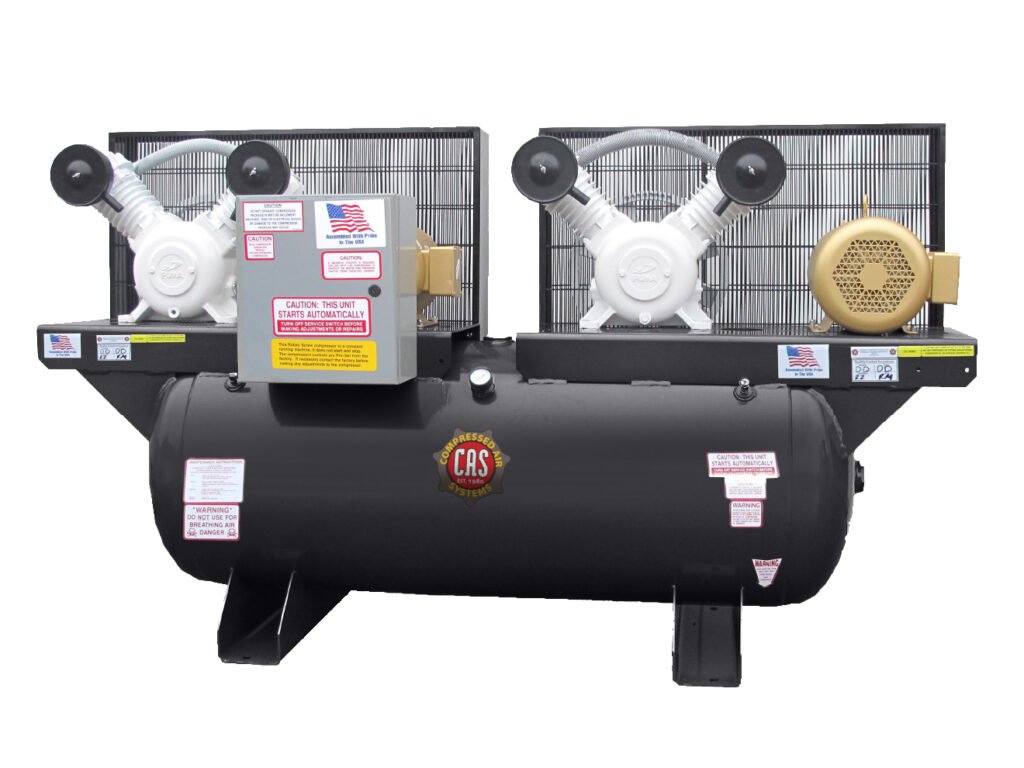

The Compressed Air Systems Industrial Stationary Duplex Oilless Piston Air Compressor is designed for medical, agricultural, food, beverage, and laboratory environments, and ensures the process or tools are provided with oil-free air. The low RPM pump provides reliable air for any application and is manufactured for durability and long life. The duplex model provides built-in redundancy and the capacity to deliver twice the power in the same amount of space as a typical compressor.
Note that this model is currently only available with the Elite package.
Elite package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Overview and Features
Features
- 2 to 30 HP
- 12 to 194 CFM @ 125 PSI
- Voltage options:
- 208-230/1
- 208-230/460/3
- 30 to 240gal tank size
- Horizontal tank orientation
- Auto start/stop
- Magnetic motor starter
- Fully enclosed belt guard
- Heavy duty air filters and industrial grade electric motor
- Elite package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
|---|---|
| Capacity | 12 CFM, 24 CFM, 34 CFM, 40 CFM, 68 CFM, 88 CFM, 126 CFM, 150 CFM, 170 CFM |
| Voltage | 208-230/1, 208-230/460/3 |
| Tank Size | 30 gallon, 80 gallon, 120 gallon, 240 gallon |
