Compressed Air Systems

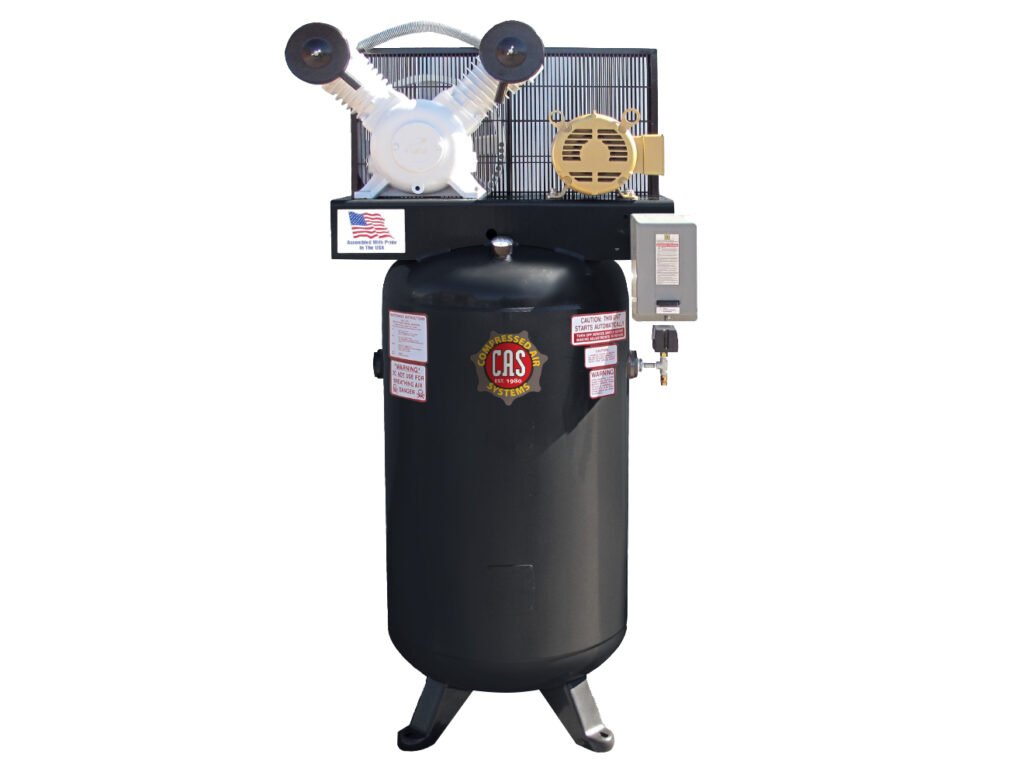

Compressed Air Systems Industrial Stationary Oilless Piston Air Compressor
Heavy duty single stage oil-free industrial duty pump
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems Industrial Stationary Oilless Piston Air Compressor is designed for medical, agricultural, food, beverage, and laboratory environments, and ensures the process or tools are provided with oil-free air. The low RPM pump provides reliable air for any application and is manufactured for durability and long life.
Note that this model is currently only available with the Elite package.
Elite package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Overview and Features
Features
- 2 to 30 HP
- 6 to 86 CFM @ 125 PSI
- Voltage options:
- 208-230/1
- 208-230/460/3
- 60 to 120gal tank size
- Vertical or horizontal tank orientation
- Auto start/stop
- Magnetic motor starter
- Fully enclosed belt guard
- Heavy duty air filters and industrial grade electric motor
- Elite package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
|---|---|
| Capacity | 6 CFM, 11 CFM, 16 CFM, 20 CFM, 34 CFM, 45 CFM, 64 CFM, 76 CFM, 86 CFM |
| Voltage | 208-230/1, 208-230/460/3 |
| Tank Size and Orientation | 60 gallon, vertical, 80 gallon, vertical, 120 gallon, horizontal |
