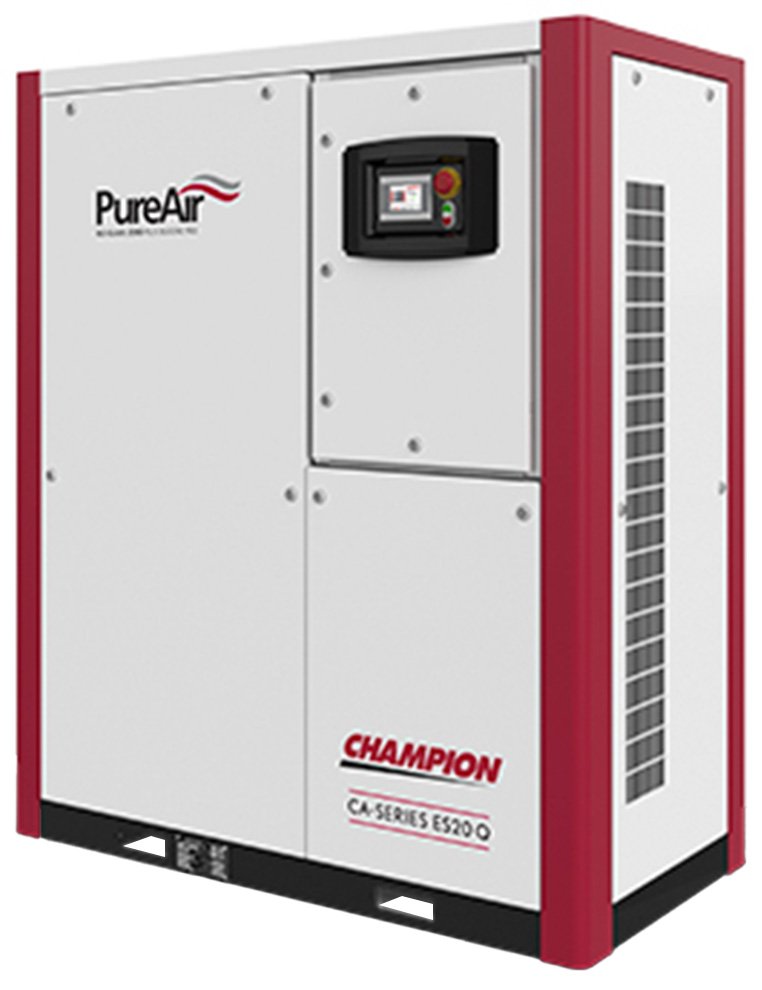

Champion CA-Series ES Oilless Scroll Air Compressor
Simplex, duplex, triplex, or quadraplex enclosed compressor, up to 101 ACFM at 140 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion CA Series ES oilless scroll air compressor is a fixed-speed, single-stage, 100% oil-less rotary scroll compressor with a 5, 7.5, or 10 HP pump. The CA Series ES has been designed specifically for laboratory, industrial, and other clean air applications in a variety of configurations. Systems meet current CSA Standards and are offered in several designated flow designs.
Rotary scroll compressor technology has become very popular because of the minimal preventative maintenance required, and the moderate time periods between maintenance intervals. All maintenance procedures can be performed in the field at a very economical cost.
Overview and Features
Features
- 5, 7.5, and 10 HP pump options
- Simplex, Duplex, Triplex, and Quadraplex configurations available
- 140 PSI max pressure
- 5 micron industrial grade intake filters
- High flow package cooling fan
- Premium efficient TEFC motor
- Air-cooled aftercooler included
- Automatic moisture drain included
- Moisture separator
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 10 HP (two 5 HP pumps), 15 HP (three 5 HP pumps), 20 HP (four 5 HP pumps), 15 HP (two 7.5 HP pumps), 22.5 HP (three 7.5 HP pumps), 30 HP (four 7.5 HP pumps), 20 HP (two 10 HP pumps), 30 HP (three 10 HP pumps), 40 HP (four 10 HP pumps) |
|---|---|
| Capacity | 12.5 ACFM at 140 PSIG, 25 ACFM at 140 PSIG, 37.5 ACFM at 140 PSIG, 50 ACFM at 140 PSIG, 15.8 ACFM at 140 PSIG, 31.6 ACFM at 140 PSIG, 47.4 ACFM at 140 PSIG, 63.2 ACFM at 140 PSIG, 25.3 ACFM at 140 PSIG, 50.6 ACFM at 140 PSIG, 75.9 ACFM at 140 PSIG, 101 ACFM at 140 PSIG |
| Configuration | Base mount, 30 gallon tank mount, 80 gallon tank mount, 120 gallon tank mount |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 208/1/60, 230/1/60 |
| Remote Tank Option (Base Mounted Units Only) | None, Remote Tank - 80 Gal, Remote Tank - 80 Gal Vinyl Lined, Remote Tank - 80 Gal Galvanized, Remote Tank - 120 Gal, Remote Tank - 120 Gal Vinyl Lined, Remote Tank - 120 Gal Galvanized, Remote Tank - 240 Gal, Remote Tank - 240 Gal Vinyl Lined, Remote Tank - 240 Gal Galvanized |
| Options | Vinyl (epoxy) Lined Tank, Galvanized Coated Tank, Remote Tank - Bypass Isolation Valves, Electric Tank Drain, Mass. Code Fittings, Deluxe HMI Control Panel - includes pressure transducer and RTDs, NEMA 4 Electrical, NEMA 4 Pressure Switch |
