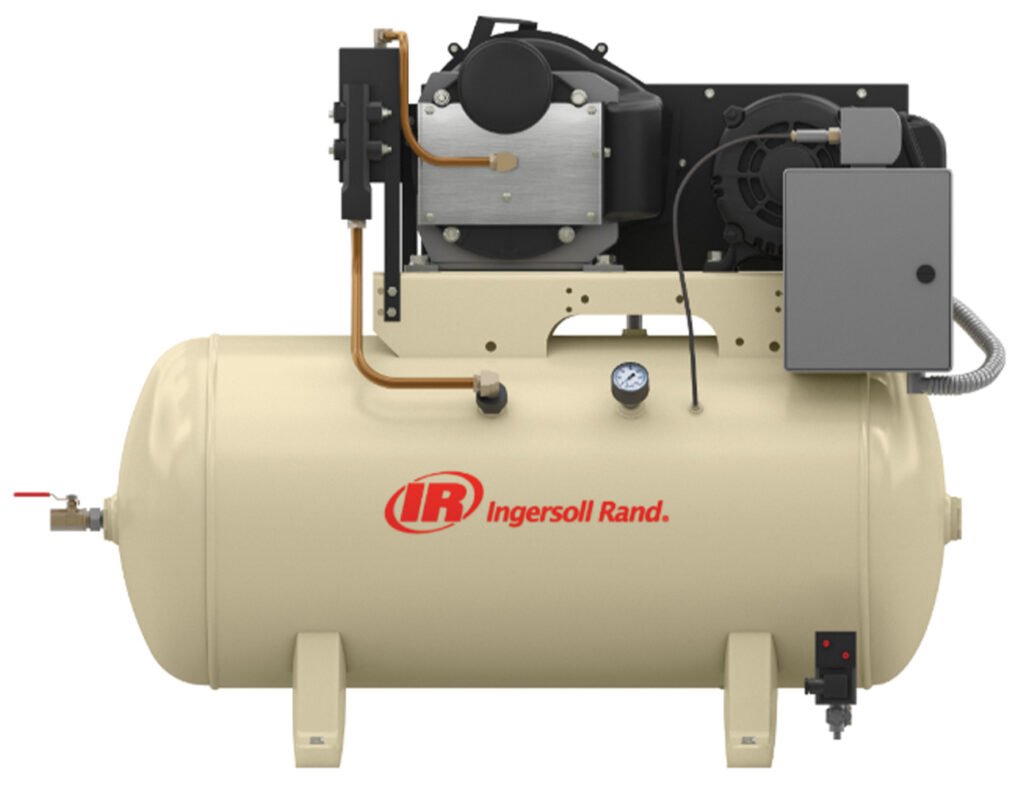

Ingersoll Rand W-Series Tank Mounted Oilless Scroll Air Compressor
3 to 10 HP open mounted compressor with pressure rating up to 145psig
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand W-Series tank mounted oilless scroll air compressor features a simple tip seal design that ensures these is no metal-to-metal contact anywhere, meaning that the system does not require lubrication and ensures high-quality, oil-free air. The compact and innovative design make them ideal for many commercial applications where reliable oil-free air is required.
Thw W-Series compressor delivers pressures up to 145psig in a single stage of compression. The built in start/stop control ensures the compressor only delivers what is needed when it is needed while the small radius rotation provides virtually instant pressure when the unit is started. The integrated radial flow fan creates built-in intercooling without the need for additional auxiliary fan help while the aftercooler (included in all packages) cools the discharged air with forced air fans included in the enclosed models to insure heat is removed from the system.
Overview and Features
Features
- 7.1 to 30.4 CFM capacity (depending on model selected)
- 30, 60, 80, or 120 gallon tank options
- 208-230/3/60, 460/3/60, or 208-230/1/60 voltage options
- NEMA 1 rated
- UL/CSA listed
- CRN rated tanks
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 3 HP, 5 HP, 7.5 HP, 10 HP |
|---|---|
| Configuration | Simplex, Duplex |
| Pressure Rating | 116psig, 145psig |
| Capacity | 8.8 CFM, 7.1 CFM, 15.2 CFM, 12.5 CFM, 23.1 CFM, 31.2 CFM, 30.4 CFM, 25 CFM |
| Tank Size | 30 gallon, 60 gallon, 80 gallon, 120 gallon |
| Voltage | 208-230/3/60, 460/3/60, 208-230/1/60, 208/3/60, 230/3/60 |
