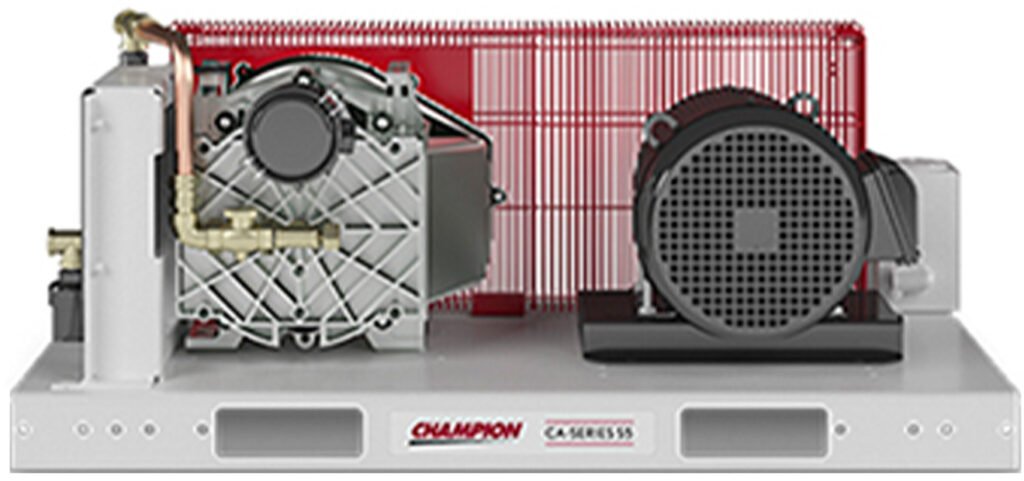

Champion CA-Series Oilless Rotary Scroll Air Compressor
Simplex, duplex, triplex, or quadraplex compressor designed specifically for industrial and laboratory applications that require 100% oilless air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion CA-Series oilless rotary scroll air compressor is a fixed speed, single stage compressor that is designed for 100% duty cycle. The CA-Series features a 5 micron intake filter, premium efficient TEFC motor, integrated cooling fan, a special tip seal design, and an air-cooled aftercooler
Overview and Features
Features
- 3, 5, 7.5, and 10 HP pump options
- Duplex, Triplex, and Quadraplex configurations available (5 to 10 HP only)
- 140 PSI max pressure
- 5 Micron Industrial Grade Intake Air Filter
- Base mounted or ASME coded tank mounted options available
- Industrial Grade Air-Cooled Aftercooler
- TEFC Motor
- Mounted Desiccant Dryer option for some models
- Integral Cooling Fan
- Moisture Separator and Trap
- Vibration Isolators
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 3 HP, 5 HP, 7.5 HP, 10 HP, 10 HP (two 5 HP pumps), 15 HP (three 5 HP pumps), 20 HP (four 5 HP pumps), 15 HP (two 7.5 HP pumps), 22.5 HP (three 7.5 HP pumps), 30 HP (four 7.5 HP pumps), 20 HP (two 10 HP pumps), 30 HP (three 10 HP pumps), 40 HP (four 10 HP pumps) |
|---|---|
| Capacity | 7.62 ACFM at 140 PSI, 12.5 ACFM at 140 PSI, 25 ACFM at 140 PSI, 37.5 ACFM at 140 PSI, 50 ACFM at 140 PSI, 16 ACFM at 140 PSI, 32 ACFM at 140 PSI, 48 ACFM at 140 PSI, 64 ACFM at 140 PSI, 25.3 ACFM at 140 PSI, 50.6 ACFM at 140 PSI, 75.9 ACFM at 140 PSI, 101.2 ACFM at 140 PSI |
| Configuration | Base mount, 30 gallon tank mount, 80 gallon tank mount, 120 gallon tank mount, 240 gallon tank mount |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 208/1/60, 203/1/60 |
| Dryer (Tank Mounted Simplex and Duplex Units Only) | None, Mounted Desiccant Dryer - 116 PSI, Mounted Desiccant Dryer - 116 PSI w/ after-filter and regulator, Mounted Desiccant Dryer - 140 PSI, Mounted Desiccant Dryer - 140 PSI w/ after-filter and regulator |
| Remote Tank Option (Base Mounted Units Only) | None, Remote Tank - 80 Gal, Remote Tank - 80 Gal Vinyl Lined, Remote Tank - 80 Gal Galvanized, Remote Tank - 120 Gal, Remote Tank - 120 Gal Vinyl Lined, Remote Tank - 120 Gal Galvanized, Remote Tank - 240 Gal, Remote Tank - 240 Gal Vinyl Lined, Remote Tank - 240 Gal Galvanized |
| Control Panel Options | None, Simplex Control Panel - NEMA 1, Simplex Control Panel - NEMA 4, Basic Duplex Control Panel - NEMA 1, Basic Duplex Control Panel - NEMA 4, Deluxe HMI Control Panel - NEMA 4 |
| Options | Vinyl (epoxy) Lined Tank, Galvanized Coated Tank, Remote Tank - Bypass Isolation Valves, Electric Tank Drain, Mass. Code Fittings, Panel Mounting - NEMA 1, Panel Mounting - NEMA 4, High Temp Switch - NEMA 1, High Temp Switch - NEMA 4, Pressure Switch - NEMA 4 |
