Altec AIR
Altec AIR CDA10 Clean Dry Air Compressor Package
Includes dryer and filtration (-100°F (-73°C) Atmospheric Dew Point), great for point of use lab applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

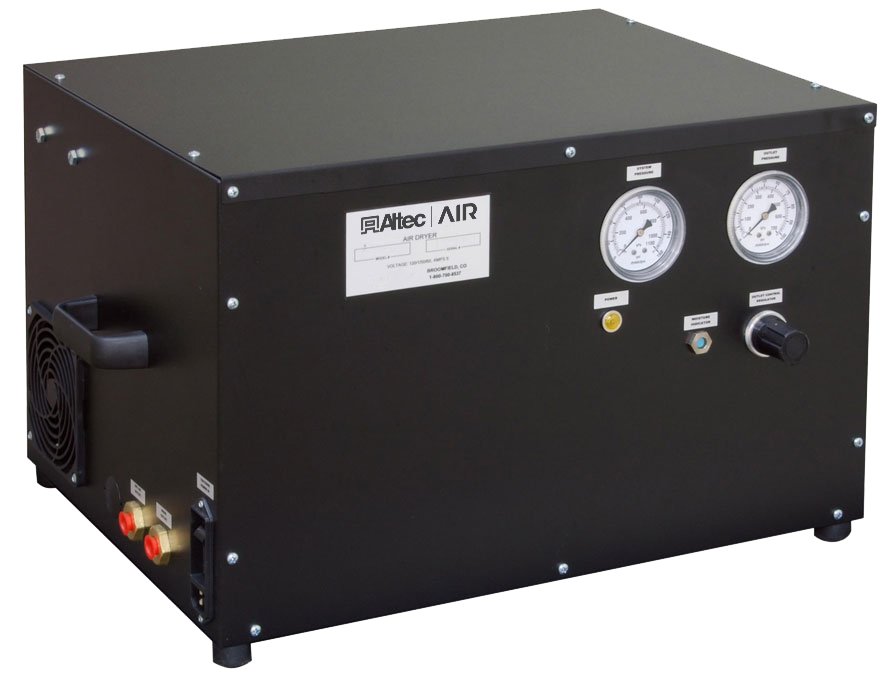

Altec AIR’s Clean Dry Air Package is a complete, enclosed, compact unit, consisting of an Oil-less Air Compressor, Regenerative Desiccant Air Dryer, Regulator, Coalescing and Particulate Filters. This packages is great for applications requiring low volumes of clean, dry compressed air at pressures up to 75 PSIG.
- Reliable oil-less Compressor to assure oil-free air at all times.
- Equipped with Rocking Piston Pump technology for long interval times between maintenance and easy service.
- Proven Regenerative Desiccant Heatless Air Dryer uses dual tower technology for continuous dry air supply.
Overview and Features
Features
- Normal: 5 LPM Continuous
- Maximum: 10 LPM Emergency
- 0 – 75 PSIG (0 – 5.1 bar)
- -100°F (-73°C) Atmospheric Dew Point
- 1/3 HP, Oil-less, Rocker Piston
- Outlet Connection; 1/4″ NPT x 1/4″ Press-to-Lock Tube Fitting
- 18″ D x 24″ W x 14″ H
- 115 VAC, 1 Phase, 50/60 Hz
- 230 VAC, 1 Phase 50/60 Hz
- 72 lbs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Voltage | 115/1/50/60, 230/1/50/60 |
|---|
