Altec AIR

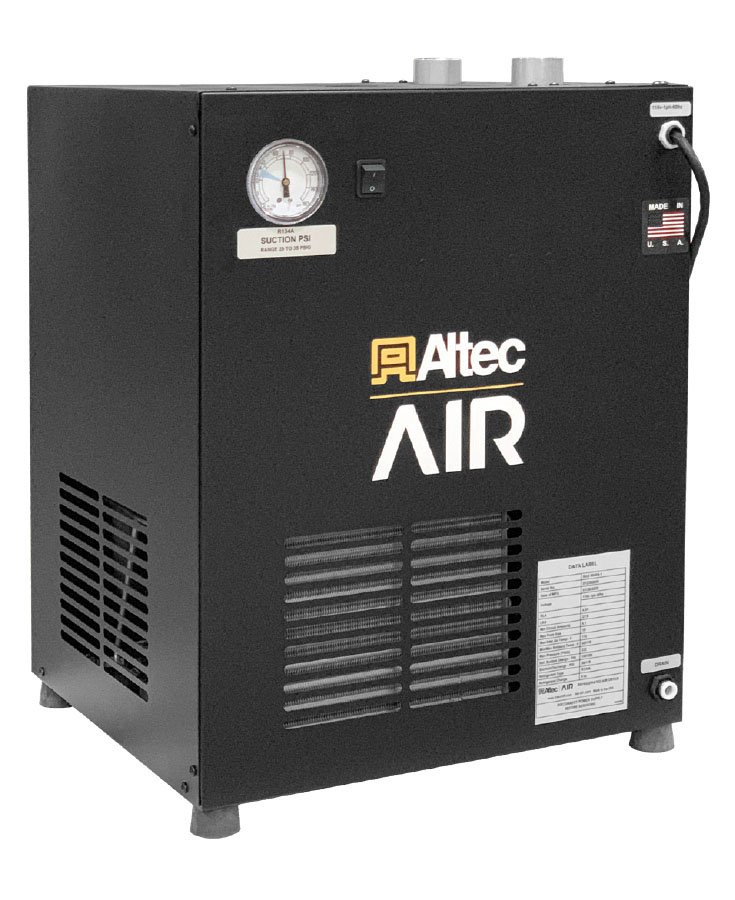

Altec AIR RHT Series High Inlet Temperature Non-Cycling Refrigerated Air Dryer
Dryer with a 10 to 120 SCFM capacity accepting inlet air temperatures up to 200°F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Altec AIR RHT Series high inlet temperature non-cycling refrigerated air dryer is designed to be used with tank mounted piston air compressors that have no aftercoolers. The RHT Series is available from 10 to 120 SCFM and features compact all-aluminum heat exchanger modules with low pressure drops and programmable automatic electronic drains. The top mounted inlet and outlet connections allow for easy installation of the dryer, filters, and bypass valves while the easy-access cabinet design ensures ease of maintenance and serviceability.
Overview and Features
Features
- 50°F pressure dew point
- 200°F max inlet air temperature
- 232 PSIG max pressure
- Doesn’t require separate aftercoolers, separators, or drains
- R134a or R404a refrigerant
- ISO Class 6
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 SCFM, 15 SCFM, 20 SCFM, 30 SCFM, 40 SCFM, 60 SCFM, 80 SCFM, 100 SCFM, 120 SCFM |
|---|---|
| Connection | 1/2" NPT, 1" NPT, 1 1/2" NPT, 2" NPT |
| Voltage | 115/1/60, 208-230/1/60, 230/3/60, 460/3/60, 575/3/60 |
