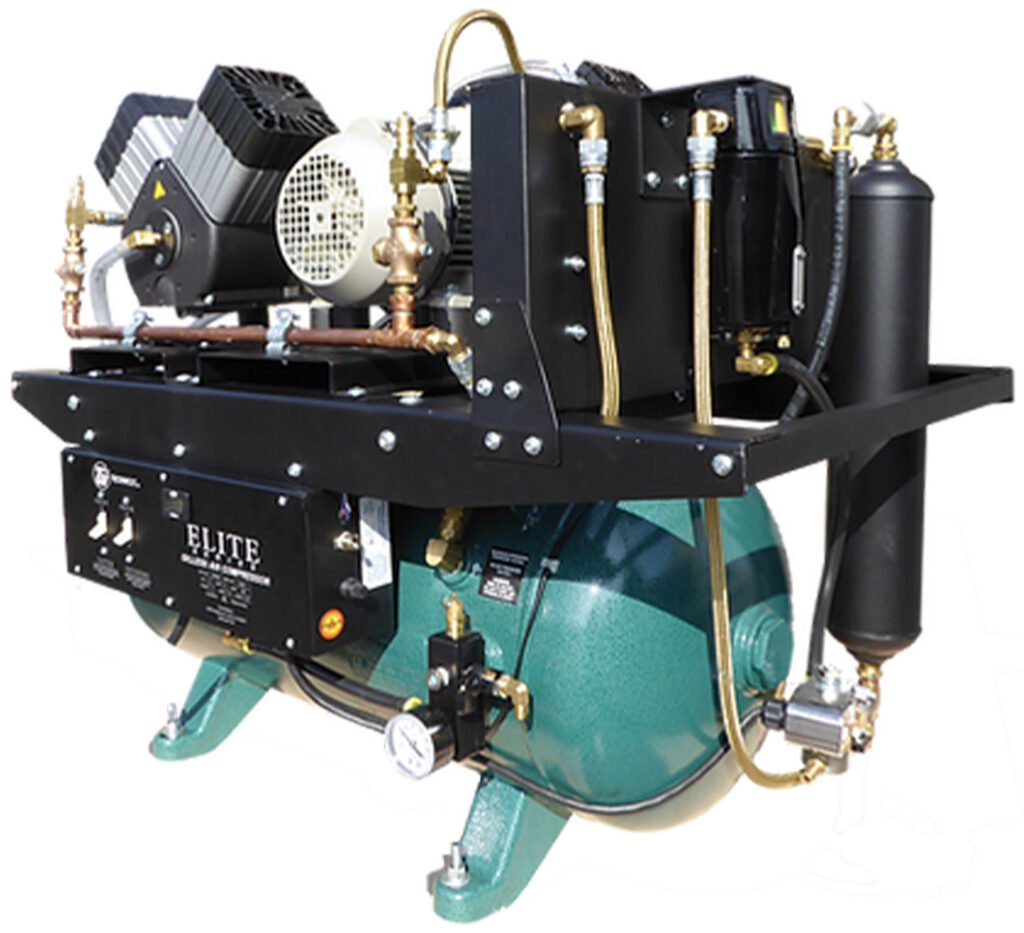

Tech West Elite Series Oilless Piston Air Compressor
Dental air compressor available in single, dual, or triple head configurations and can accommodate between 2 to 10 users
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Tech West Elite Series Oilless Piston Air Compressor caters to the dental industry and boasts reliable technology, sturdy build, quiet operation, and oil-free functionality along with its cutting-edge energy-saving features. Its compressor heads have Teflon-coated pistons and sleeves, Ensuring their longevity.
The Elite Series comes in single, dual, or triple head configurations and can accommodate between 2 to 10 users simultaneously. Its air dryer helps prevent the growth of bacteria and build-up in the receiver tank by drying the air before it reaches the tank. The air intake filters efficiently trap dirt, dust, and other pollutants, ensuring that the air entering the compressor is clean.
Overview and Features
Features
- Horsepower/CFM options:
- 1.5 HP / 5.5 CFM
- 3 HP / 11 CFM
- 4.5 HP / 16.5 CFM
- 110 PSI
- Air dryer included
- Moisture indicators standard on all models
- Air intake filters included
- 10, 20, or 30 gallon powder coated air receiver tank
- 208-230/3/60 voltage
- Exceeds NFPA 99C guidelines
- Oilless heads carry a 5 year or 3500 hour warranty
- All other components carry a 2 year warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Dryer | Dryer included |
| Horsepower | 1.5 HP (single head), 3 HP (dual head - two 1.5 HP pumps), 4.5 HP (triple head - three 1.5 HP pumps) |
| Capacity | 5.5 CFM, 11 CFM, 16.5 CFM |
| Pressure | 110 PSI |
| Tank Size | 10 gallon, 20 gallon, 30 gallon |
| Voltage | 208-230/3/60 |
