Tech West Elite Rocky Series Oilless Piston Air Compressor
Dual head dental air compressor with included desiccant air dryer system for .01 micron filtration
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

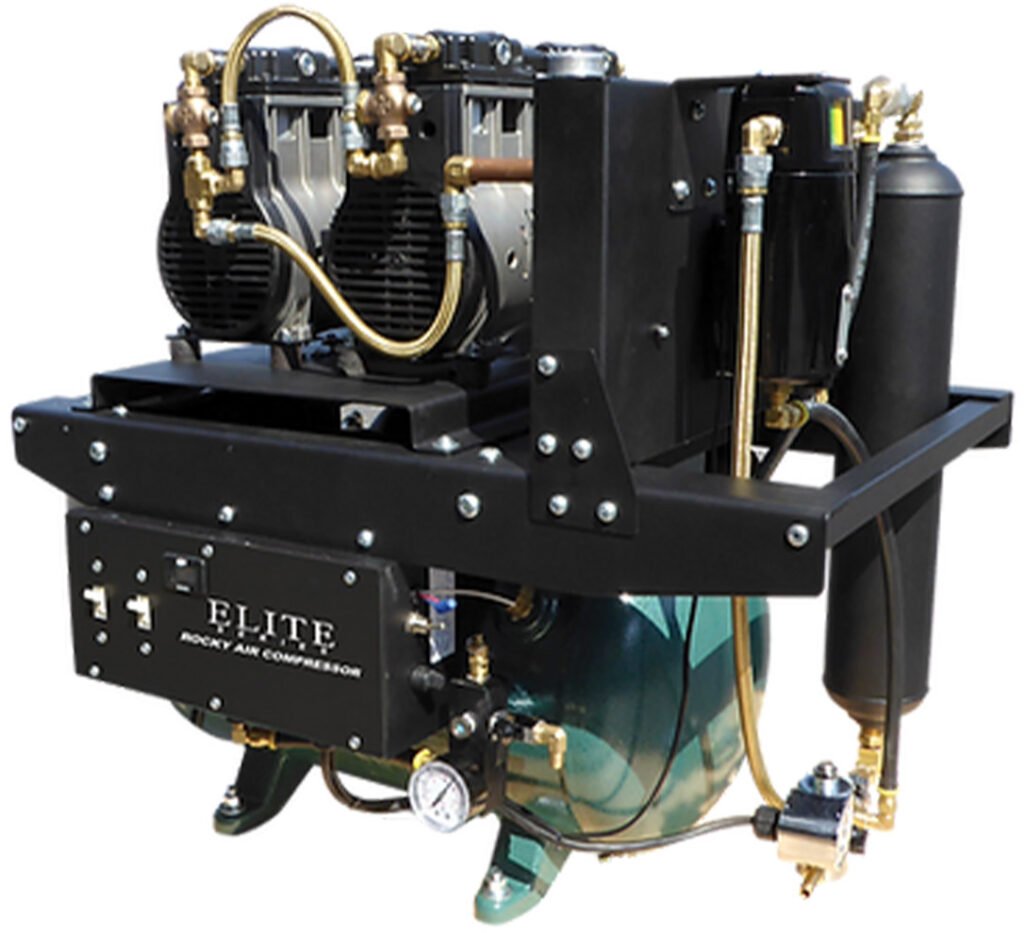

The Tech West Elite Rocky Series Oilless Piston Air Compressor is designed specifically for the dental industry. It features dependable technology, a robust build, quiet operation, and oil-free functionality, as well as high-performance air filtration via the desiccant air dryer system included. The compressor heads are equipped with Teflon-coated pistons and sleeves, which ensure their durability. Additionally, the rocking piston technology reduces noise and extends the motor’s lifespan.
The Elite Rocky Series is equipped with a dual head configuration, allowing for 2 to 3 users to use it at the same time. The desiccant air dryer guarantees clean and dry air through .01 micron filtration, and keeps the dew point at -25°F. The remote air intake filters efficiently capture dirt, dust, and other pollutants, ensuring that the air entering the compressor is pure.
Overview and Features
Features
- 1.5 HP
- 5.2 CFM
- 100 PSI
- Desiccant air dryer included
- .01 micron filtration
- -25°F dew point
- Moisture indicators standard on all models
- Remote air intake filters included
- 10 gallon powder coated air receiver tank
- Optional quiet cover available
- 115/1/60 or 208-230/3/60 voltage
- Exceeds NFPA 99C guidelines
- Oilless heads carry a 5 year or 3500 hour warranty
- All other components carry a 2 year warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Dryer | Desiccant air dryer included |
| Horsepower | 1.5 HP |
| Capacity | 5.2 CFM |
| Pressure | 100 PSI |
| Tank Size | 10 gallon |
| Voltage | 115/1/60, 208-230/3/60 |
| Quiet Cover | None, Add quiet cover |
