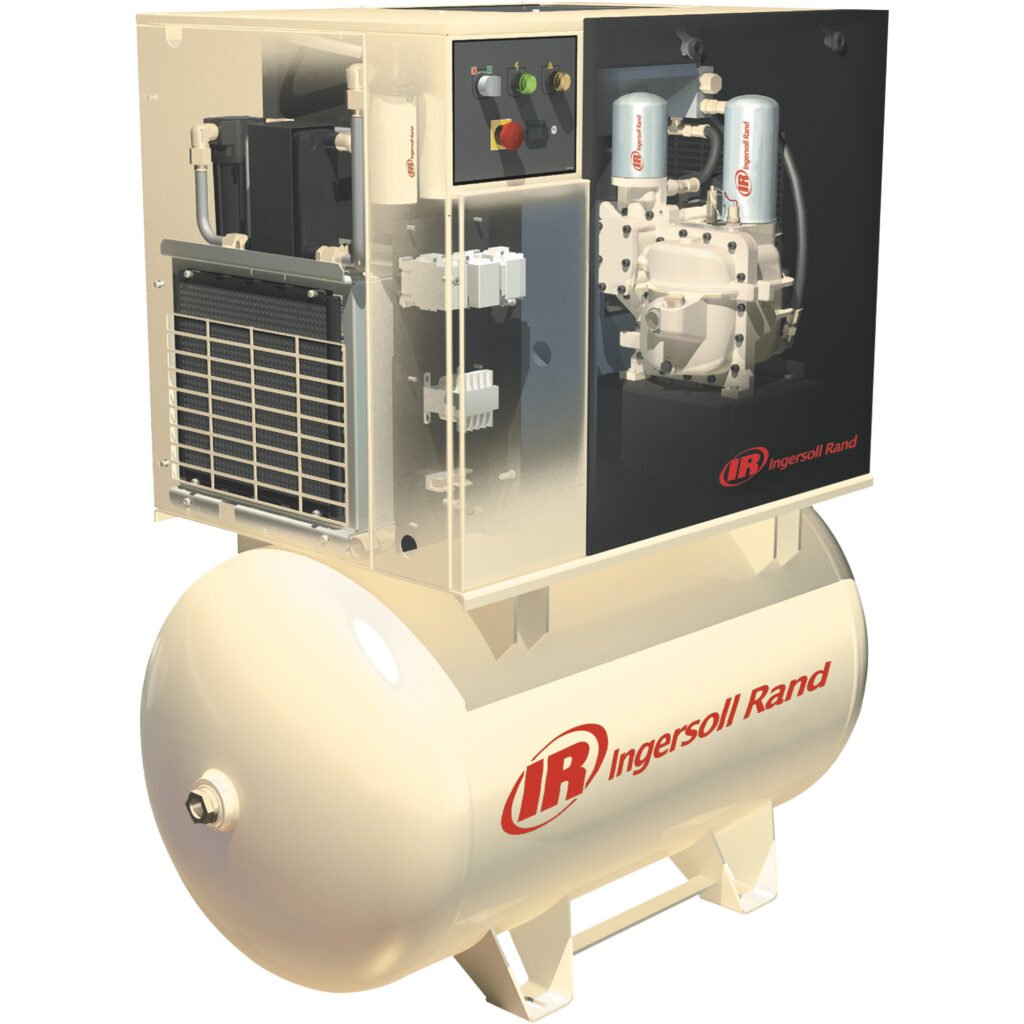

Ingersoll Rand UP6 Oil Flooded Rotary Screw Air Compressor
5 to 15 hp, fixed speed air-cooled compressor with auto start / stop functionality and simple diagnostics, with and without air dryers (TAS).
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand UP6 oil flooded rotary screw compressor provides a complete air solution in an easy to use and compact package while delivering high efficiency and performance. With the optional Total Air System (TAS) you’ll get clean and dry air in a cost-effective single package with a small footprint.
Overview and Features
Features
- Horsepower (Capacity CFM):
- 5 HP (15 or 13 CFM)
- 7.5 HP (26 or 23 CFM)
- 10 HP (36 or 32 CFM)
- 15 HP (52 or 47 CFM)
- 200V, 230V, 460V, or 575V ODP motor options
- Full voltage starter
- Poly-V belt drive system
- Baseplate mounted as standard
- Optional 80 or 120 gallon tanks with mounting available
- Nema 1 Enclosure
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Dryer Option | No Dryer, Total Air System (Includes Air Dryer) |
|---|---|
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP |
| Pressure Rating | 125 PSI, 150 PSI |
| Capacity | 15 CFM, 13 CFM, 26 CFM, 23 CFM, 36 CFM, 32 CFM, 52 CFM, 47 CFM |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 230/1/60 |
| Tank and Mounting | Base mounted, Base mounted with air dryer, Tank mounted on 80 gallon tank, Tank mounted on 120 gallon tank |
