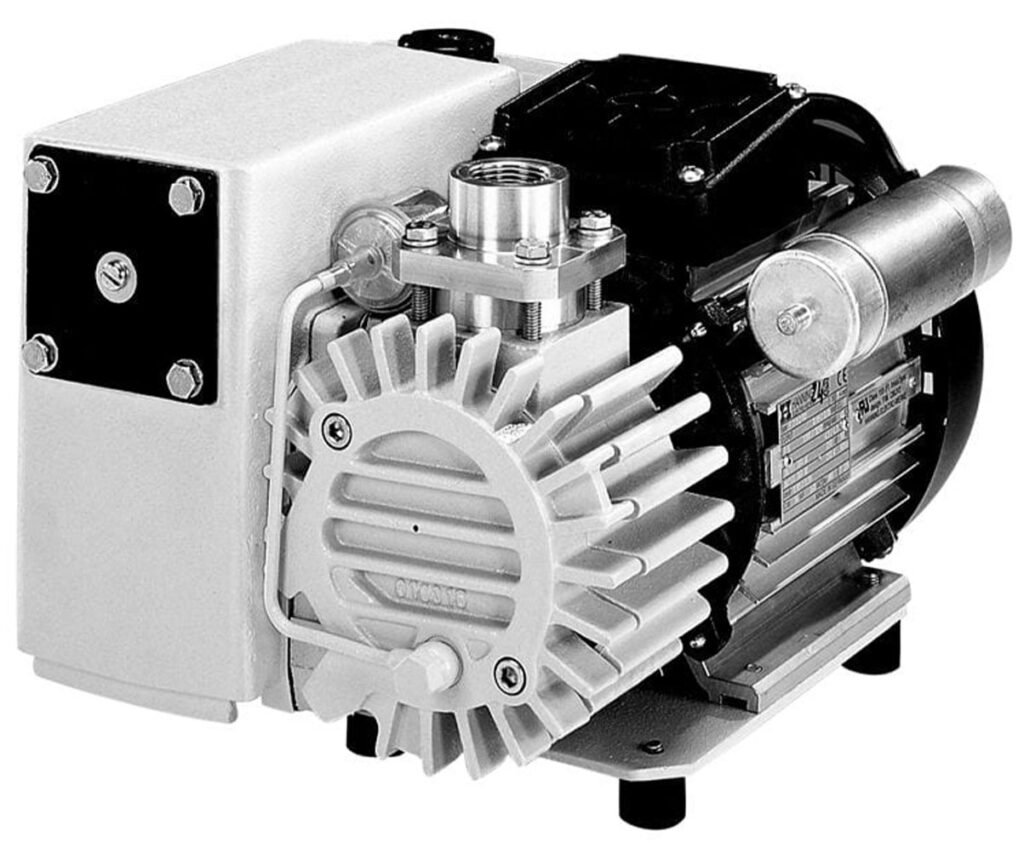

Leybold SOGEVAC B Series Oil Sealed Rotary Vane Vacuum Pump
Single-stage, compact vacuum pump with low noise levels, delivers smooth and clean operation in various industrial applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Leybold SOGEVAC B Series Oil Sealed Rotary Vane Vacuum Pump is ideal for modern industrial applications with low noise levels, high pumping speeds, and high reliability. It has a pumping capacity range from 11.2 to 261.3 CFM, making it a versatile option for various industrial needs.
The Leybold SOGEVAC B is designed to use oil for sealing, lubricating, and cooling the pump chamber. This pump has a continuous lubrication system that can operate even at high intake pressures, making it suitable for most rough vacuum applications. The oil carried by the process gas is separated in the oil box and exhaust filters, which trap fine oil mist. This separation system reduces exhaust emissions and is oil mist-free, resulting in a cleaner working environment with less than 1 ppm. Additionally, the SOGEVAC B vacuum pump is known for its low power consumption, typically 15% less than competitive pumps.
The SOGEVAC B pumps come equipped with an anti-suck back valve at the inlet flange that prevents oil from coming back into the inlet line when the pump is stopped and a gas ballast for pumping condensable vapors.
Applications:
- Automotive industry
- Food industry
- Heat treatment
- Vacuum coating
- Metallurgy
- Power engineering
- Space simulation
- Medical technology
- Composites and resin degassing
- Vacuum drying
- Leak testing
- Central vacuum systems
Overview and Features
Features
- 11.2 to 261.3 CFM
- Anti-suck back valve
- Gas ballast option available
- Oil sealed, lubricated, and cooled
- 1 and 3 phase motor options available depending on model selected
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pump Speed | 11.2 CFM, 18.2 CFM, 31.2 CFM, 41.8 CFM, 68.9 CFM, 141.3 CFM, 226.6 CFM, 261.3 CFM |
|---|---|
| Voltage | 110-120/1/60, 220-266/380-460/3/60, 230/460/3/60, 230/460/3/60 ±10% volts, Three phase wide range IE3 4,5 kW 200V 220/380V 230/400V 240/415V // 5,5 kW 200V 220/380V 230/400V 440V 460V 60Hz - IE3, Three phase wide range 200 V -15 % … 230 V +10% / 380 … 400 V ±10% & 460 V ±10%, 60 Hz, PTC sensor |
