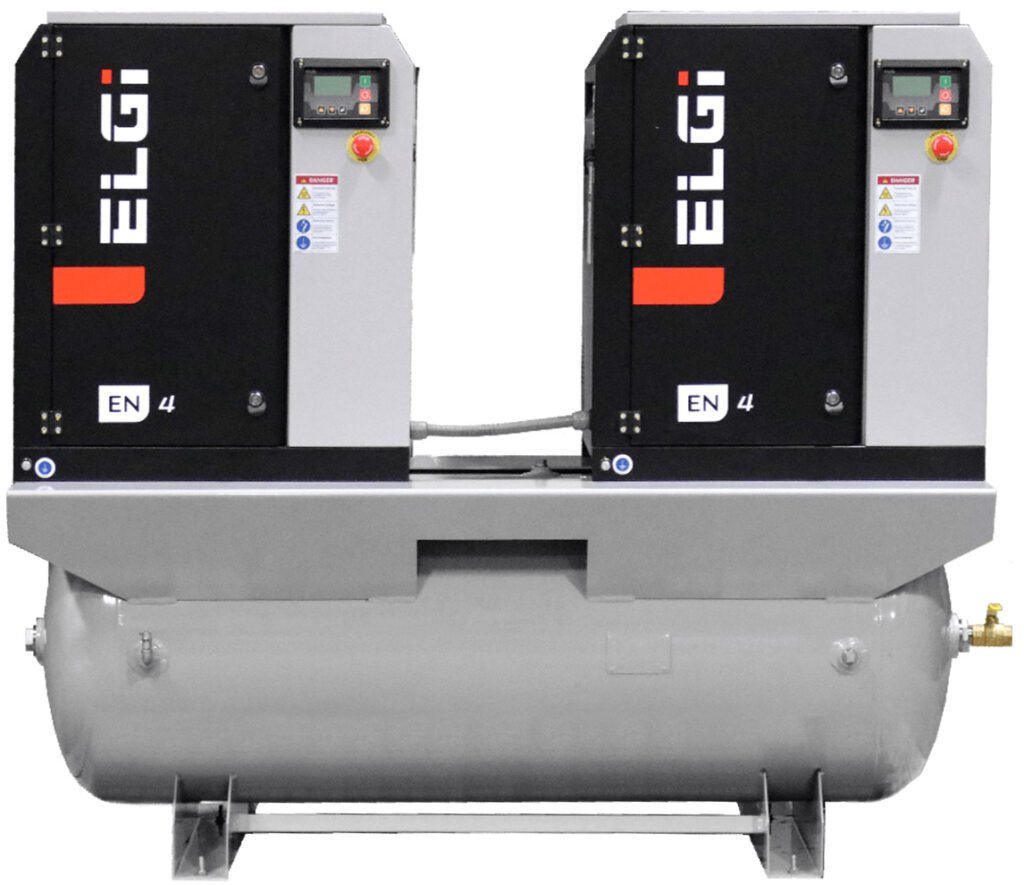

ELGi EN Series Tank Mounted Duplex Rotary Screw Air Compressor
5 to 20 HP configurations available, duplex air compressor, includes start up at jobsite by ELGi trained factory technician.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi EN Series duplex tank mounted rotary screw air compressor is designed to provide low carbon footprint along with high reliability and low maintenance requirements. The air filtration system keeps the compressor’s internal components clean, maintaining optimum cooling efficiency and low oil-fill, resulting in a longer life span of the machine.
The EN Series features the Neuron XT controller which provides malfunction alarms, safety shutdowns, and easy-to-use service indications while allowing the user to monitor and control the machine’s performance.
The EN Series air-oil separation utilizes the impact and deceleration process. The impact of the air-oil mixture in the circumferential tank area prompts deceleration action to remove the oil particles from the air. The air with minor traces of oil then enters the separator for further purification.
Overview and Features
Features
- TEFC NEMA premium efficiency motors
- 10 to 40 HP options (36 to 146 CFM)
- 125, 150, and 175 PSI options available
- 100% rated duty cycle
- Impact and deceleration process oil separation
- 120 Gallon horizontal air tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP (two 5 HP motors), 15 HP (two 7.5 HP motors), 20 HP (two 10 HP motors), 30 HP (two 15 HP motors), 40 HP (two 20 HP motors) |
|---|---|
| Pressure | 125 PSI, 150 PSI, 175 PSI |
| Capacity | 38.6 CFM, 34.4 CFM, 30.8 CFM, 53 CFM, 48.4 CFM, 42 CFM, 77 CFM, 68 CFM, 60 CFM, 110 CFM, 103 CFM, 90 CFM, 136 CFM, 123 CFM, 116 CFM |
| Voltage | 230/3/60, 460/3/60, 230/1/60 |
| Startup | None, Include Startup |
