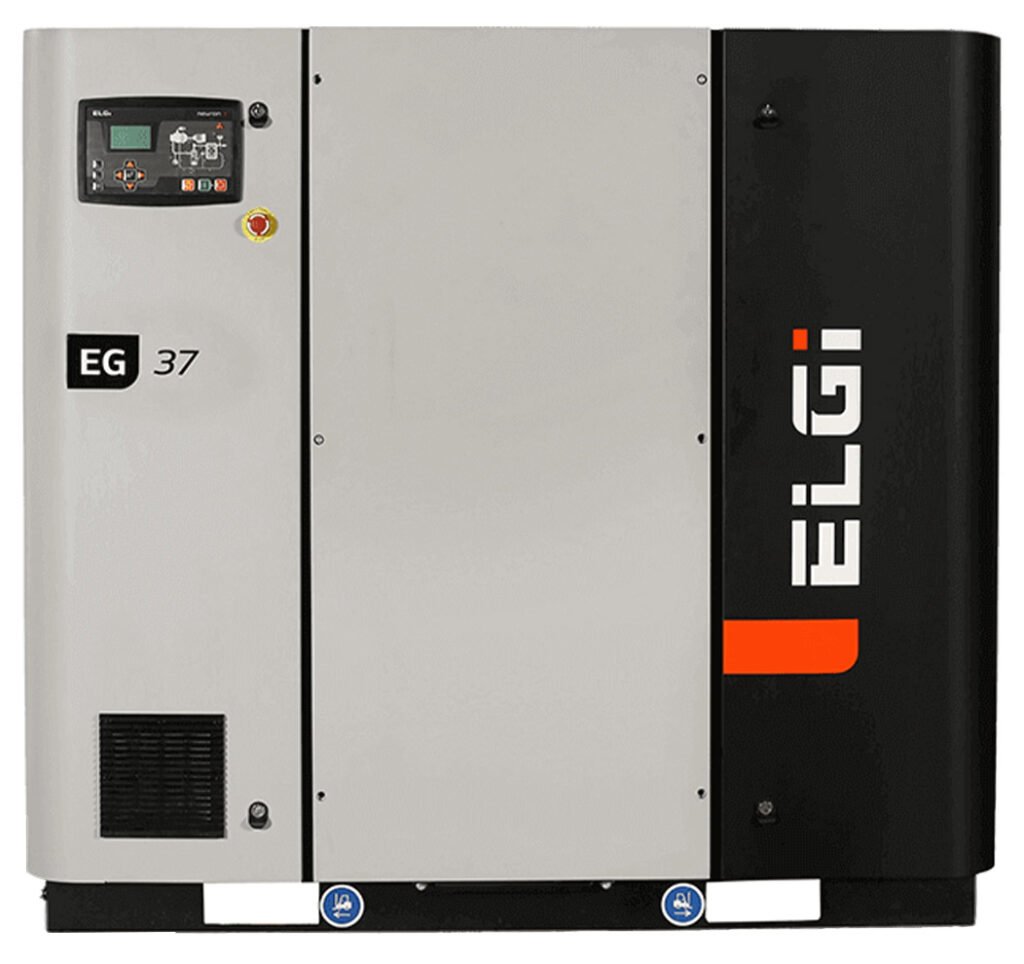

ELGi EG Series Rotary Screw Air Compressor
15 to 300 hp configurations available, fixed or variable speed drive, includes start up at jobsite by ELGi trained factory technician
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi EG Series rotary screw air compressor comes equipped with eta-V profile rotors with a 4/5 lobe combination. The EG series air ends are designed to run slower, maximizing the air compressors’ life and efficiency while providing high quality compressed air even in harsh environmental conditions.
The EG Series features unique Oil Separation by Impact and Centrifugal action (OSBIC) process to separate air and oil while minimizing pressure drop. This process involves removing oil in three stages, delivering consistent low oil carryover in the compressed air which reduces the oil discharged into the environment.
The EG series have optional Variable Frequency Drives (VFD), which help match the compressor output with the demand by varying the motor speed. This means reduced power consumption following the reduced demand, eliminating the frequent load-unload cycle and offering an energy-efficient solution.
Overview and Features
Features
- 15 to 300 HP options
- TEFC NEMA premium efficiency motor with class F insulation
- Fixed or variable speed models available
- 1 ppm oil carryover
- Wye-Delta starter
- Factory installed dust filters
- Voltages available (depending on horsepower/drive selection):
- 230-460/3/60
- 460/3/60
- 200/3/60
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Drive | Fixed speed drive, Variable speed drive |
|---|---|
| Horsepower | 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP, 125 HP, 150 HP, 200 HP, 250 HP, 300 HP |
| Voltage | 230/460/3/60, 460/3/60, 200/3/60 |
| Capacity | 71 CFM at 100 PSI, 62 CFM at 125 PSI, 55 CFM at 150 PSI, 49 CFM at 175 PSI, 94 CFM at 100 PSI, 85 CFM at 125 PSI, 77 CFM at 150 PSI, 65 CFM at 175 PSI, 117 CFM at 100 PSI, 110 CFM at 125 PSI, 92 CFM at 150 PSI, 82 CFM at 175 PSI, 143 CFM at 100 PSI, 134 CFM at 125 PSI, 116 CFM at 150 PSI, 96 CFM at 175 PSI, 203 CFM at 100 PSI, 178 CFM at 125 PSI, 153 CFM at 150 PSI, 136 CFM at 175 PSI, 248 CFM at 100 PSI, 212 CFM at 125 PSI, 203 CFM at 150 PSI, 172 CFM at 175 PSI, 302 CFM at 100 PSI, 267 CFM at 125 PSI, 230 CFM at 150 PSI, 208 CFM at 175 PSI, 375 CFM at 100 PSI, 355 CFM at 115 PSI, 343 CFM at 125 PSI, 288 CFM at 150 PSI, 271 CFM at 175 PSI, 525 CFM at 100 PSI, 485 CFM at 115 PSI, 458 CFM at 125 PSI, 425 CFM at 150 PSI, 390 CFM at 175 PSI, 79 to 375 CFM at 100 to 175 PSI, 86 to 458 CFM at 100 to 125 PSI, 149 to 390 CFM at 150 to 175 PSI, 604 CFM at 100 PSI, 546 CFM at 115 PSI, 536 CFM at 125 PSI, 478 CFM at 150 PSI, 720 CFM at 100 PSI, 650 CFM at 115 PSI, 630 CFM at 125 PSI, 570 CFM at 150 PSI, 975 CFM at 100 PSI, 887 CFM at 115 PSI, 850 CFM at 125 PSI, 778 CFM at 150 PSI, 1275 CFM at 100 PSI, 1182 CFM at 115 PSI, 1175 CFM at 125 PSI, 1000 CFM at 150 PSI, 1515 CFM at 100 PSI, 1355 CFM at 115 PSI, 1350 CFM at 125 PSI, 1170 CFM at 150 PSI, 224 to 604 CFM at 100 to 150 PSI, 262 to 720 CFM at 100 to 150 PSI, 377 to 975 CFM at 100 to 150 PSI, 485 to 1275 CFM at 100 to 150 PSI, 560 to 1515 CFM at 100 to 150 PSI, 230 CFM at 115 PSI, 30 to 170 CFM at 100 to 175 PSI, 60 to 260 CFM at 100 to 175 PSI, 60 to 270 CFM at 100 to 175 PSI, 17 to 72 CFM at 100 to 125 PSI, 17 to 50 CFM at 150 to 175 PSI, 17 to 85 CFM at 100 to 125 PSI, 17 to 65 CFM at 150 to 175 PSI, 30 to 120 CFM at 100 to 125 PSI, 30 to 90 CFM at 150 to 175 PSI, 30 to 140 CFM at 100 to 125 PSI, 30 to 104 CFM at 150 to 175 PSI |
