Hertz Kompressoren

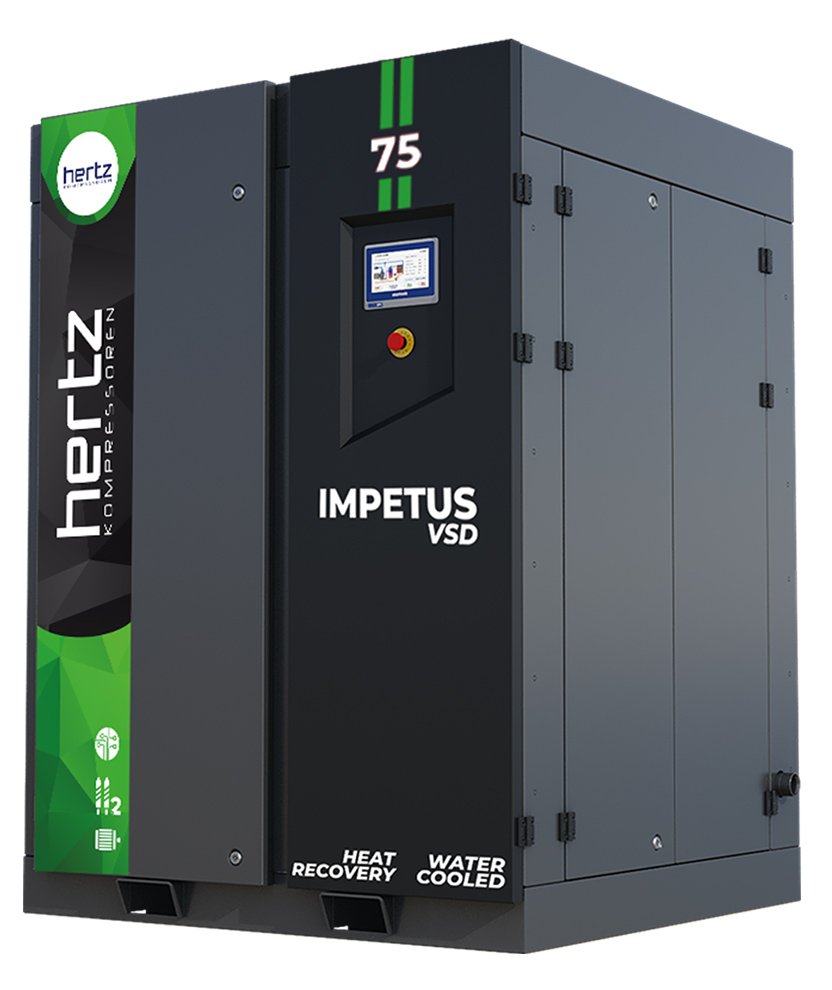

Hertz IMPETUS Series VSD Rotary Screw Air Compressor
Oil injected two-stage, direct coupled, variable speed compressor, 30 to 430 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz IMPETUS Series VSD Rotary Screw Air Compressor features a two-stage screw block, IE5 efficiency-class IPM electric motor, compact air and oil heat exchangers, and a built-in oil and water separation system.
Overview and Features
Features
- 30 to 430 HP models
- IE5 efficiency-class IPM electric motors
- Two-stage screw block
- Soft start with variable speed power transmission
- Heat recovery (optional)
- Smartronic 7″ touchscreen
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 30 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP, 125 HP, 150 HP, 180 HP, 220 HP, 250 HP, 270 HP, 340 HP, 430 HP |
|---|---|
| Capacity | 36 to 152.2 CFM (100 PSI max), 35.3 to 138.1 CFM (125 PSI max), 30 to 122.5 CFM (150 PSI max), 61.4 to 219.7 CFM (100 PSI max), 55.5 to 203.4 CFM (125 PSI max), 52.3 to 180.8 CFM (150 PSI max), 62.5 to 271.2 CFM (100 PSI max), 57.9 to 241.9 CFM (125 PSI max), 60.4 to 213.7 CFM (150 PSI max), 81.6 to 327 CFM (100 PSI max), 74.9 to 291.3 CFM (125 PSI max), 72.7 to 250 CFM (150 PSI max), 98.2 to 410 CFM (100 PSI max), 92.2 to 369.4 CFM (125 PSI max), 78 to 323.1 CFM (150 PSI max), 120.8 to 570.7 CFM (100 PSI max), 120.4 to 511.7 CFM (125 PSI max), 119.7 to 448.8 CFM (150 PSI max), 182 to 635 CFM (100 PSI max), 186 to 601 CFM (125 PSI max), 178 to 549 CFM (150 PSI max), 171 to 481 CFM (175 PSI max), 239 to 816 CFM (100 PSI max), 238 to 752 CFM (125 PSI max), 234 to 684 CFM (150 PSI max), 230 to 617 CFM (175 PSI max), 272 to 979 CFM (100 PSI max), 269 to 915 CFM (125 PSI max), 263 to 834 CFM (150 PSI max), 263 to 756 CFM (175 PSI max), 297 to 1185 CFM (100 PSI max), 294 to 1090 CFM (125 PSI max), 288 to 981 CFM (150 PSI max), 288 to 842 CFM (175 PSI max), 297 to 1339 CFM (100 PSI max), 294 to 1228 CFM (125 PSI max), 288 to 1118 CFM (150 PSI max), 286 to 961 CFM (175 PSI max), 410 to 1516 CFM (100 PSI max), 403 to 1404 CFM (125 PSI max), 406 to 1272 CFM (150 PSI max), 404 to 1163 CFM (175 PSI max), 604 to 1845 CFM (100 PSI max), 593 to 1698 CFM (125 PSI max), 590 to 1559 CFM (150 PSI max), 581 to 1366 CFM (175 PSI max), 591 to 2203 CFM (100 PSI max), 588 to 2067 CFM (125 PSI max), 577 to 1908 CFM (150 PSI max), 577 to 1640 CFM (175 PSI max) |
| Lubricant | Smart Oil 6000 (Standard), Food Grade Oil |
| Heat Recovery | None, Add heat recovery |
| Startup | Startup Included |
