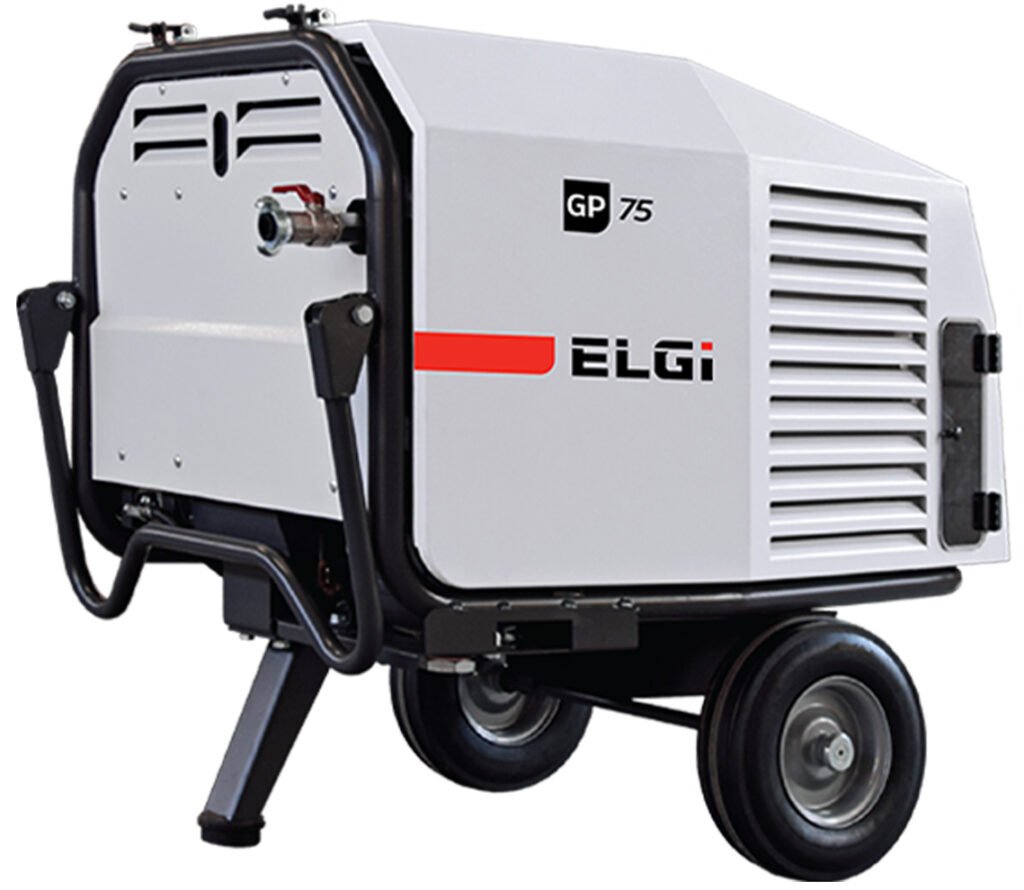

ELGi GP75 Gas Powered Rotary Screw Air Compressor
100, 160 or 190 PSI options, Honda 22.5 HP gas engine, available with wheels or skid mounted
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi GP75 gas powered rotary screw air compressor (previously made by Rotair) is a 100psi compact compressor that is easy to maneuver. The enclosed design optimizes air flow for cooling while protecting internal components, and all of the easy-to-access filters (except air filter) are spin-on for simple maintenance.
The GP75 is ideal for cable laying, mining, sandblasting, oil and gas exploration, and construction sites. The optional skid mount configuration makes this compressor easy to install in a truck bed. Add on the 160 or the 190psi high pressure kit allows this compressor to be used in even more applications.
Overview and Features
Features
- Honda GX690 22 HP gas engine with electric start
- 2 cylinders
- 3400 RPM max engine speed
- 4-stroke system
- 690 cc displacement
- 45″ x 34″ x 48″
- 12-volt electrical system with alternator
- 4 gallon fuel tank
- 582 lbs.
- High pressure kits available for 160 and 218psi
- The GX690 Honda engine is not fuel injected
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 22.5 HP |
|---|---|
| Capacity | 75 CFM |
| Pressure | 100psi |
| Skid Option | Standard with wheels, Skid mount |
| High Pressure Option | None - Standard 100psi, 160psi kit, 218psi kit |
