Quincy Compressor

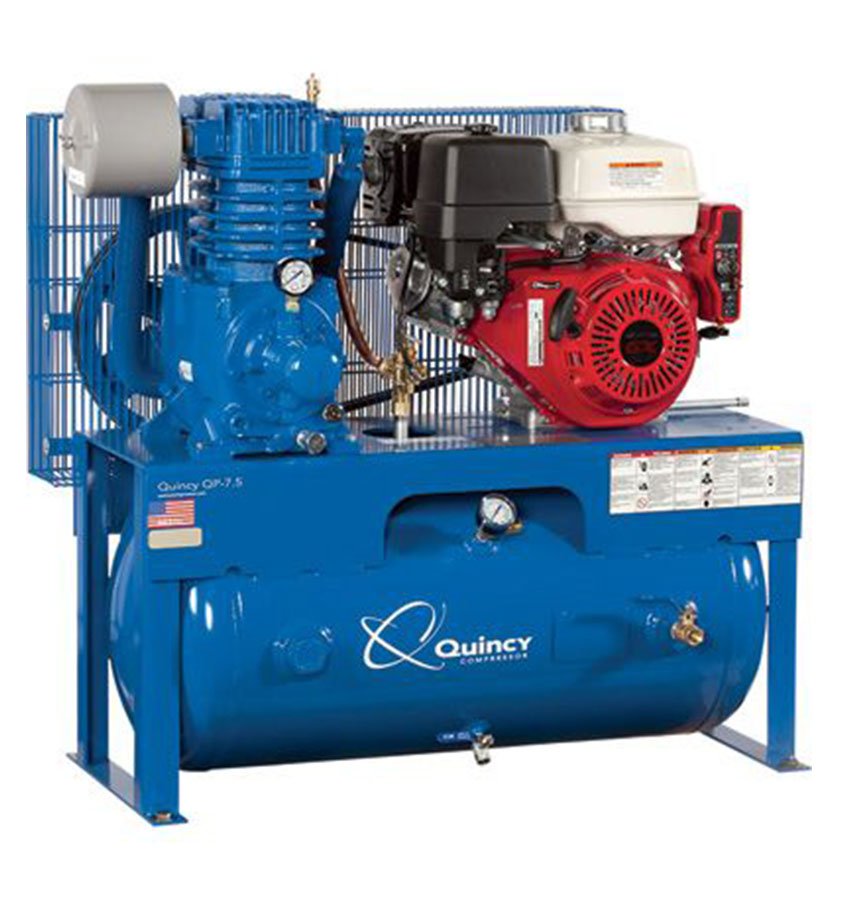

Quincy Compressor QP Series Gas Powered Two Stage Piston Air Compressor
Pressure lubricated compressor, 13 hp Honda or 14 hp Kohler engine and 30 gallon horizontal tank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor QP Series gas powered two stage piston air compressor has a fully pressure-lubricated system that is ideal for service truck applications. The QP Series features heavy duty cast iron construction, rifle-drilled crankshaft, connecting rods, oil filter gauge, stainless steel reed valves with valve bumpers, and a Gerotor positive displacement oil pump. The high-efficiency fin and tube intercooler reduces inter-stage air temperature for maximum performance and increased valve life. An electronically balanced fan-type cast iron flywheel delivers a powerful flow of air across the intercooler, cylinder, and heads for effective unit cooling and smooth operation.
Overview and Features
Features
- 13 to 14 HP
- 23.6 ACFM capacity at 175 PSIG
- Cast iron construction
- 175 PSIG pressure rating
- 200 PSIG rated ASME/CRN-coded receiver
- ASME-coded relief valves
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 13 HP, 14 HP |
| Engine Type | Honda, Kohler |
| Capacity | 23 ACFM |
| Warranty Kit | None, NoBull warranty kit |
