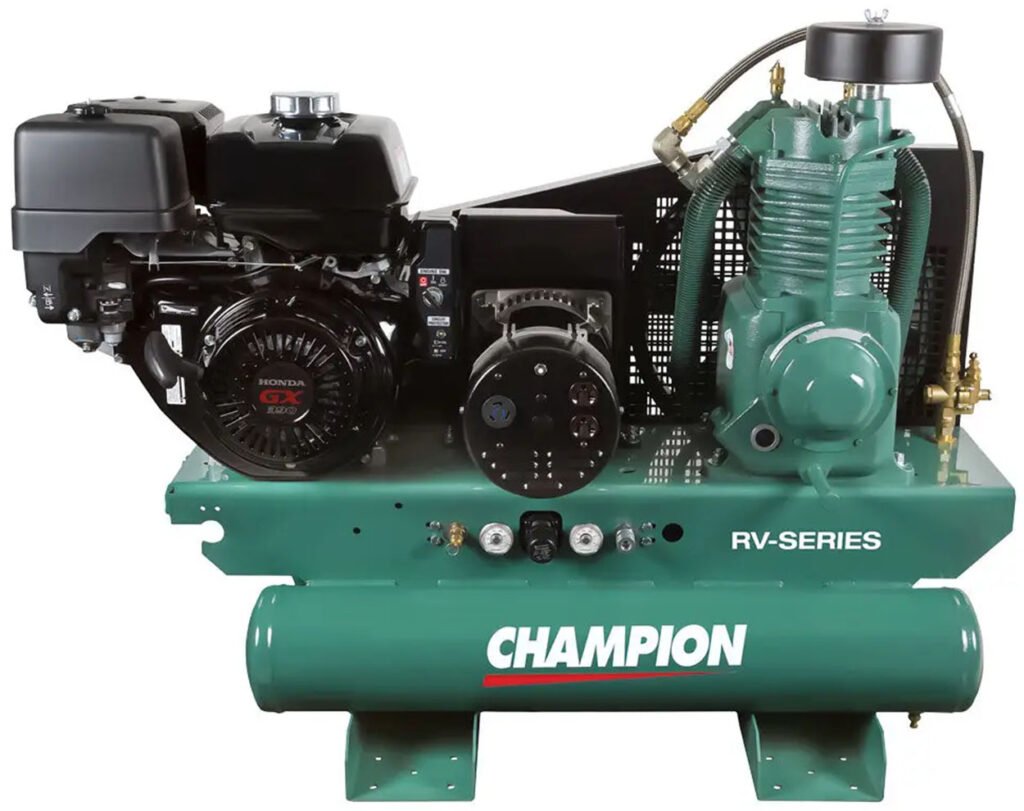

Champion Centurion II Two Stage Piston Air Compressor and Generator
Splash lubricated compressor pump with 13 HP Honda motor and 4000-watt generator, rated up to 175psi
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion Centurion II two stage piston air compressor and generator combines the reliable Honda GX390 gas powered motor with the Champion RV-15 pump and a 4000-watt generator for a total compressed air solution. This combination gives the user the flexibility of running both your pneumatic and electric tools off of one system.
The RV-15 pump is a 100% cast iron, splash-lubricated design that utilizes special alloy steel reed valves to provide a self-cleaning design. The Honda GX390 motor is designed for demanding applications with an overhead valve design that offers cooler and more fuel efficient operation. The 4000-watt generator features a brushless alternator, two 120V, 15 amp receptacles and one 240V , 20 amp receptacle.
Overview and Features
Features
- Honda GX390 13 HP engine with electric start
- Industrial 4000-Watt Generator
- Brushless alternator
- Two 120V, 15 Amp receptacles
- One 240V, 20 Amp receptacle
- 17.9 CFM at 175psi
- Two 4-gallon receiver tanks with manual drain
- Enclosed belt guard
- Tank pressure and output pressure gauges
- Adjustable pressure regulator
- Pressure relief valve
- Air socket
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
