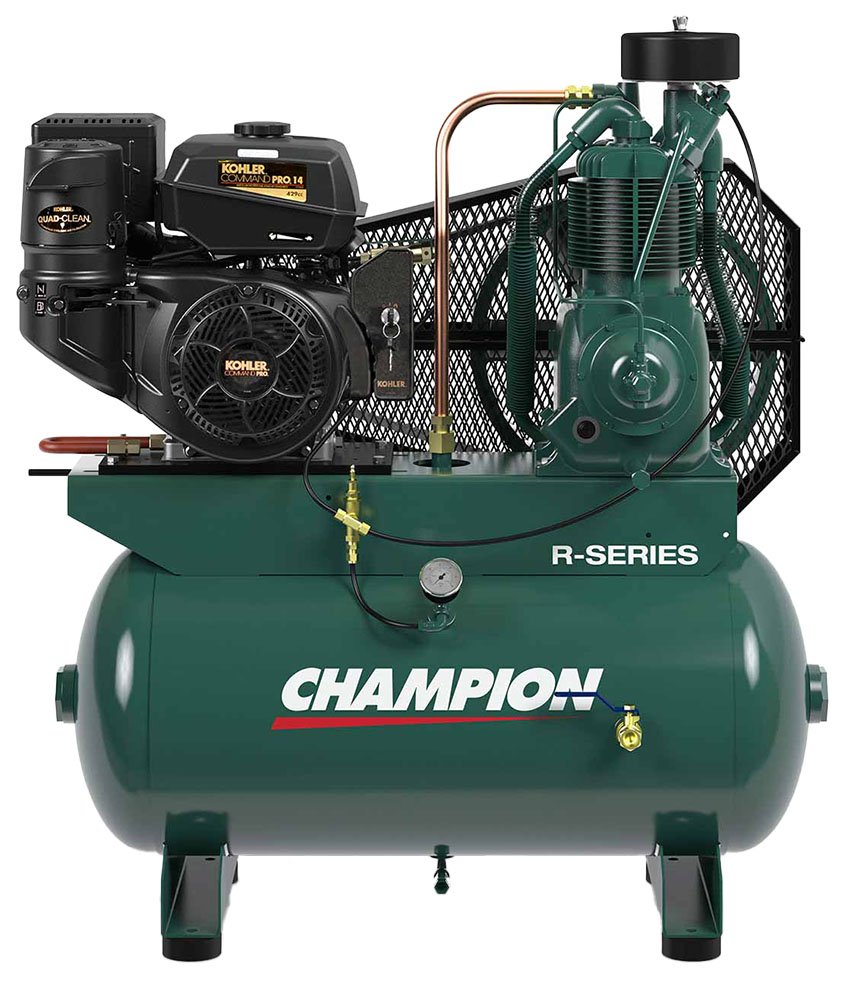

Champion R-Series Gas Powered Two Stage Piston Air Compressor
Splash lubricated compressors, 13 or 14 hp, Kohler or Honda motor, rated up to 175psi
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion R-Series gas powered two stage piston air compressor is available as a tank mounted model (30, 60, 80, or low-profile 2x 4 gallon) or base mounted model. The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenance and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Overview and Features
Features
- Motors available:
- Kohler CH440 (14 HP)
- Honda GX690 (13 HP)
- Kohler CH680 (22.5 HP)
- 23.2 CFM capacity at 175psi (tank mount)
- 44 CFM capacity at 175psi (base mount)
- Tank configurations:
- Two 4 gallon tanks (low profile configuration)
- 30 gallon
- 60 gallon
- 80 gallon
- Base Mount option
- Electric start
- Loadless starting
- Vibration isolators included
- Enclosed belt guard
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount, Base mount |
|---|---|
| Horsepower | 14 HP (Kohler CH440 motor), 22.5 HP (Kohler CH680 motor), 13 HP (Honda GX390 motor) |
| Capacity | 23.2 CFM, 44 CFM |
| Pressure | 175psi |
| Tank Size | 30 gallon, 60 gallon, Two 4 gallon tanks (low profile), 80 gallon, No Tank |
