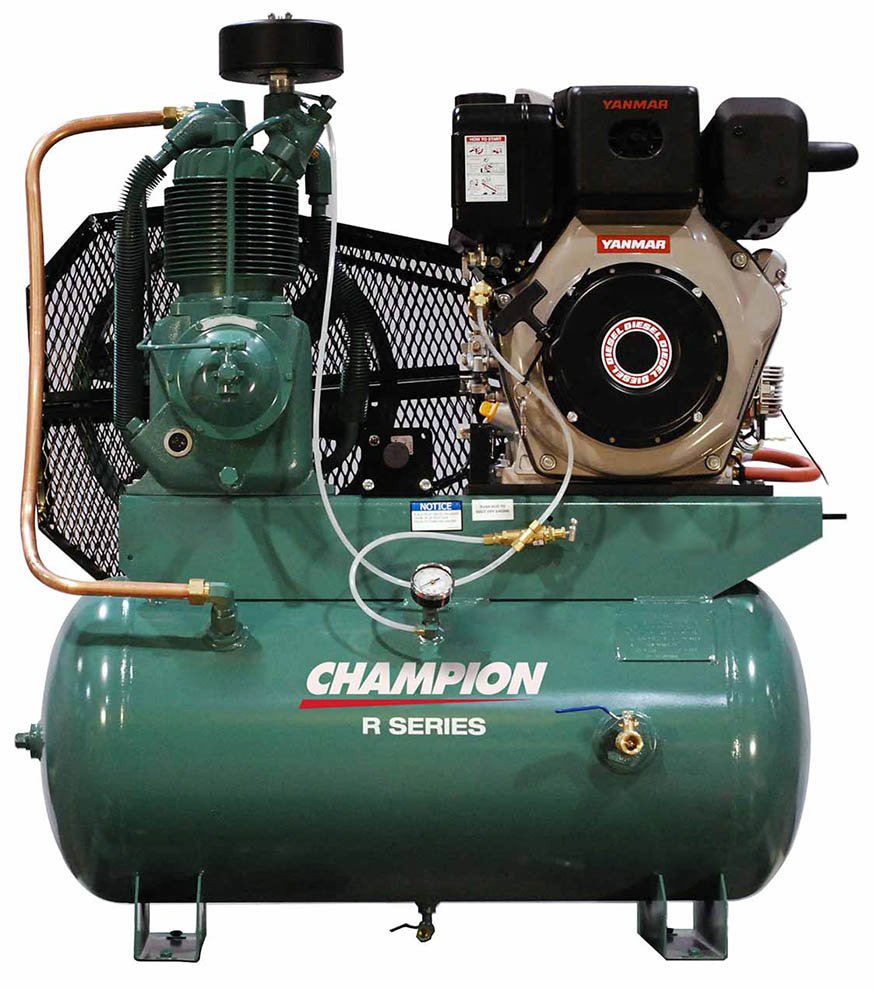

Champion R-Series Diesel Powered Two Stage Piston Air Compressor
Splash lubricated compressor with pneumatic throttle control, Kohler or Yanmar motor, rated up to 175psi
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion R-Series Diesel two stage piston air compressor is available as a base mounted model or as a tank mounted model (30 or 80 gallon). The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenace and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Overview and Features
Features
- Motors available:
- Kohler KD440 (9.1 HP, 20.1 CFM at 175psi)
- Yanmar L100W (9.3 HP, 21.7 CFM at 175psi)
- 30 and 80 gallon receiver tanks available
- ASME coded and CRN certified
- Electric start
- Loadless starting
- Vibration isolators included
- Enclosed belt guard
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Tank mount |
|---|---|
| Horsepower | 9.1 HP (Kohler KD440 motor), 9.3 HP (Yanmar L100W motor) |
| Capacity | 20.1 CFM, 21.7 CFM |
| Pressure | 175psi |
| Tank Size | None, 30 gallon, 80 gallon |
