Ingersoll Rand

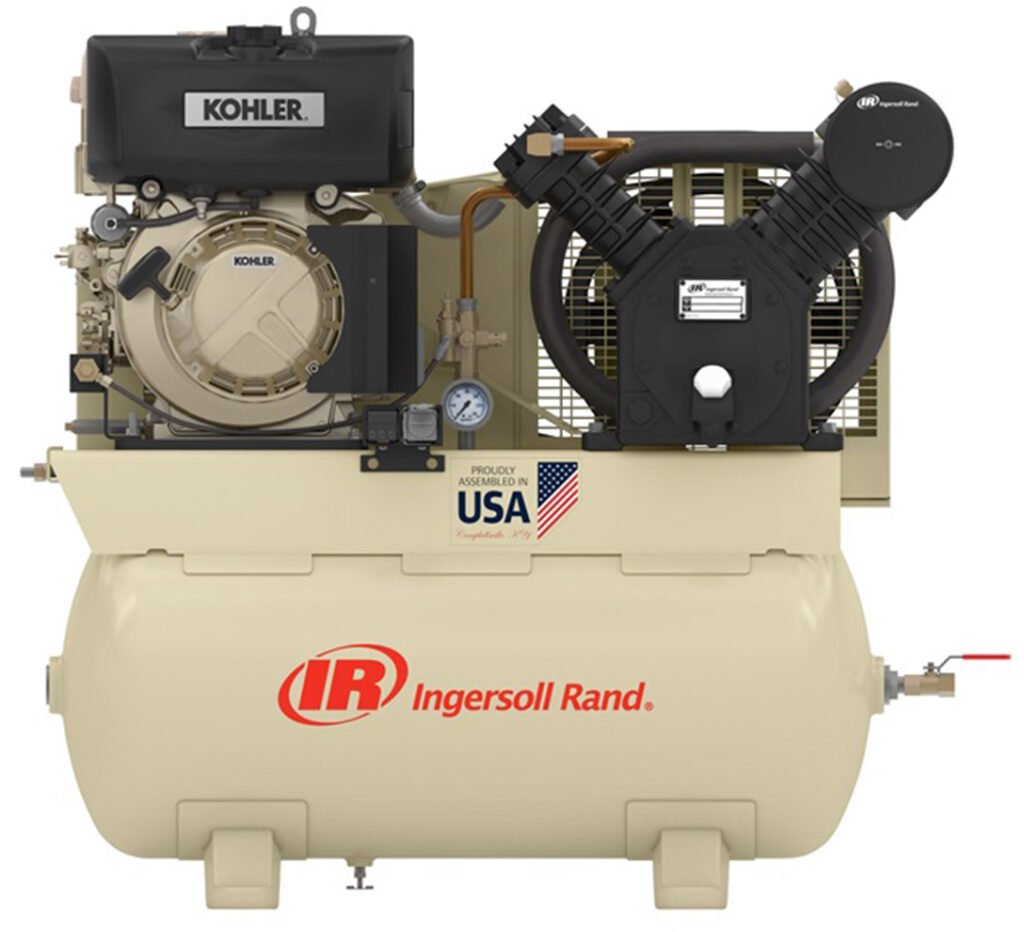

Ingersoll Rand 2475 Diesel Powered Two-Stage Piston Air Compressor
10 HP compressor with 24 CFM capacity at 175psi with pull and electric starting
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand 2475 diesel powered two-stage piston air compressor is designed to deliver compressed air where electric power is not available. With truck-bed mounting, the 2475 is often used in fleet and field service, remote pneumatic, and emergency production line applications.
The 2475 features durable cast iron construction, enclosed belt guard, and a weather-resistant powder-coat paint finish that is designed for over 15,000 hours of use. The two-stage pump operates up to 175psi and the 30 gallon ASME receiver tank provides plenty of compressed air for demanding applications.
Optional Start Up Kit Includes:
- 4 quarts of T30 All Season Select oil
- 1 set of replacement air filters
Overview and Features
Features
- Motor options:
- Kohler 10 HP, 22 CFM at 175psi
- Yanmar 10 HP, 22.6 CFM at 175psi
- Manual tank drain
- Pull and electric start
- Enclose belt guard
- 30 gallon receiver tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 10 HP (Kohler motor), 10 HP (Yanmar motor) |
| Capacity | 22 CFM, 22.6 CFM |
| Pressure | 175psi |
| Tank Size and Orientation | 30 gallon, horizontal |
