Chicago Pneumatic

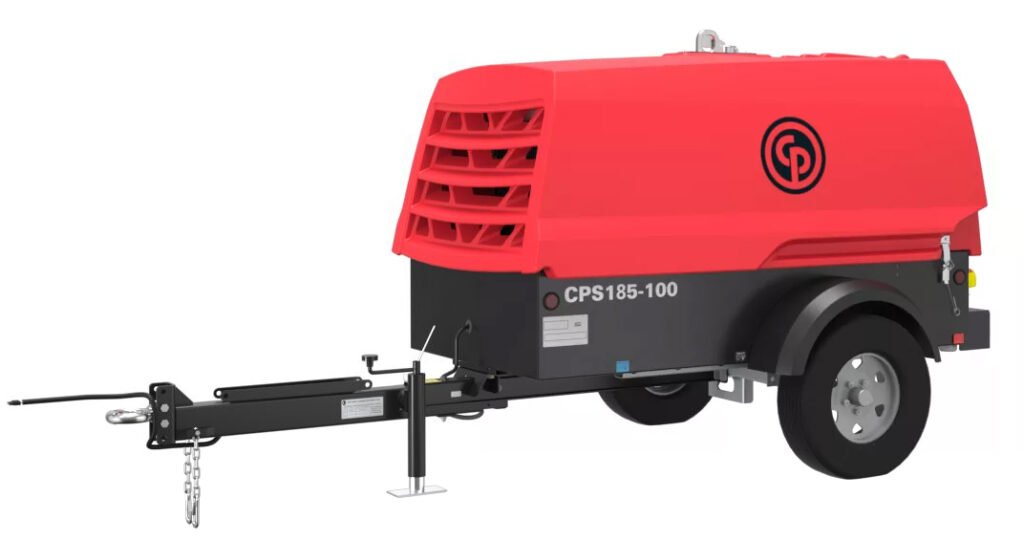

Chicago Pneumatic CPS 185 KoD, 185 CFM Portable Rotary Screw Air Compressor
185 CFM, Kohler Tier 4 Final Diesel Engine, Portable
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPS 185 Portable Rotary Screw Air Compressor is single-stage and oil-injected, powered by a liquid-cooled, three-cylinder diesel engine. The unit consists of an air end, diesel engine, cooling circuit, air/oil separation and control systems, all enclosed within a RedrockTM polyethylene shell.
The unit features 110% fluid containment, an internal toolbox, external lifting eye, and an XC1004 controller. The cold weather package includes a 120V block heater and synthetic compressor oil, lowering the minimum starting temperature of the unit.
Overview and Features
Features
- Standard Configuration:
- Kohler Tier 4 Final diesel engine, DOC only (no DEF).
- Thermostatic Bypass valve on compressor oil system.
- Mineral based Compressor Oil (1000hrs/1yr service interval).
- CP XC1004 controller comes with disconnect switch standard; Operational monitoring, diagnostics and safety warning/shutdowns such as high engine temp and low fuel.
- Heavy Duty Battery.
- Spillage Free Frame.
- DOT towing package; Road lights (4 way flat plug), Adjustable height 3” pintle towing eye, 13” wheels and torsion axle, VIN, adjustable jack stand, No brake
- Minimum starting temperature:
- With cold weather package: -13°F (-25°C)
- Without cold weather package: 14°F (-10°C)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Weather Option | Standard, Cold Weather - min. starting temperature -13°F (-25°C) |
|---|
