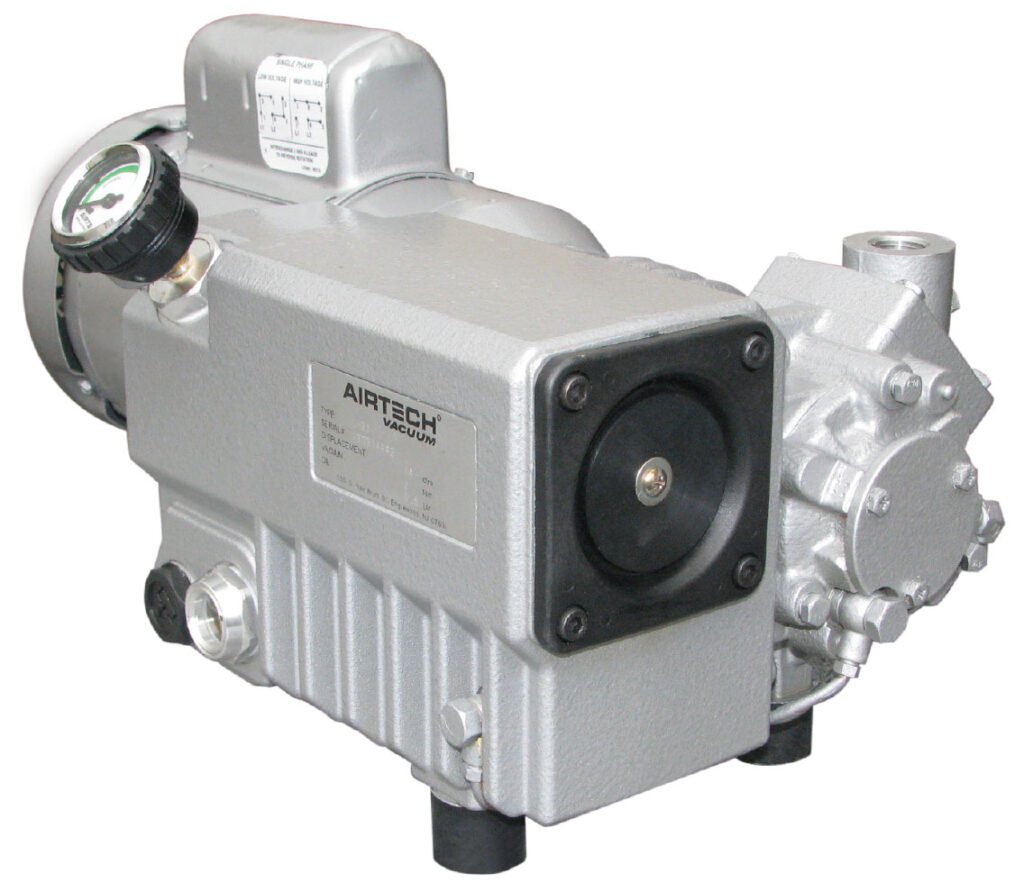

Airtech L Series Rotary Vane Vacuum Pump
0.75 to 25 HP single stage, direct drive pumps with a capacity range of 7 to 460 CFM with an end vacuum of 0.5 Torr
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airtech L Series rotary vane vacuum pump features integral exhaust filters, vibration isolators, and composite vane material which improves the lifespan of the pump. The L Series has an operating capacity range of 7 to 460 CFM while obtaining an end vacuum of 0.5 Torr. The L Series is a single stage and oil-lubricated rotary vane vacuum pump complete with integral oil-recirculating system. The pump is air-cooled, direct driven, and multi-vane including TEFC motor. All models include a gas ballast.
Overview and Features
Features
- TEFC high-efficiency motors available
- Air cooled, oil lubricated
- Composite material vane
- Wire mesh inlet screen
- Integrated exhaust filters
- Exhaust pressure gauge
- Oil level sight glass
- Spin-on oil filters
- Vibration isolators
- Anti-suck back valve
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.75 HP, 1 HP, 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 12 HP, 15 HP, 25 HP |
|---|---|
| Capacity | 7 CFM, 15 CFM, 21 CFM, 28 CFM, 45 CFM, 70 CFM, 112 CFM, 130 CFM, 155 CFM, 180 CFM, 212 CFM, 330 CFM, 460 CFM |
| Motor | Without motor, 208-230/460/3/60 voltage motor, 115/230/1/60 voltage motor |
| Starter Voltage | None, 208-230, 460 |
