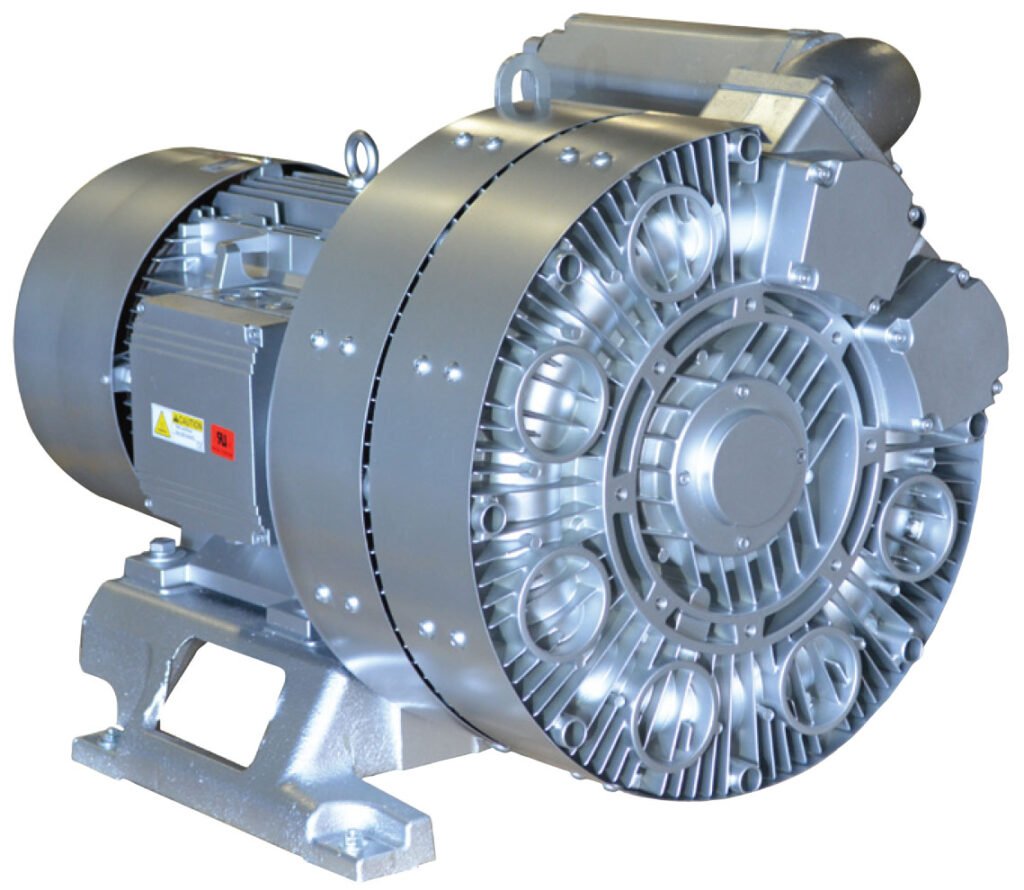

Airtech 3BA9 Series Regenerative Blower
Multi-stage, 9.79 to 32.86 HP, 250 to 360 CFM,3-phase vacuum/pressure regenerative blowers
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airtech 3BA9 Series regenerative blower is an ideal alternative to standard rotary vane pumps and PD/rotary lobe blowers with its lightweight, compact design, and ease of operation. The 3BA9 Series utilizes close-coupled construction which makes it easy to install and can be quickly added to an existing system. The outboard bearing design runs cooler than other designs, extending the service life of the pump.
Overview and Features
Features
- -261 inHg maximum vacuum
- 421 inH2O maximum pressure
- Non-contacting impeller
- Cooler outboard bearing design
- High performance deep groove ball bearings
- Rugged die-cast aluminum construction
- IE3 premium efficient motor
- UL recognized and CE compliant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 9.79 HP, 13.28 HP, 19.44 HP, 26.69 HP, 32.86 HP |
|---|---|
| Capacity | 250 CFM, 360 CFM |
| Pressure | -148 Vacuum H2O or 136 Pressure H2O, -156 Vacuum H2O or 204 Pressure H2O, -233 Vacuum H2O or 245 Pressure H2O, -233 Vacuum H2O or 373 Pressure H2O, -261 Vacuum H2O or 204 Pressure H2O, -261 Vacuum H2O or 421 Pressure H2O, -125 Vacuum H2O or 104 Pressure H2O, -164 Vacuum H2O or 176 Pressure H2O, -217 Vacuum H2O or 212 Pressure H2O, -217 Vacuum H2O or 325 Pressure H2O, -237 Vacuum H2O or 156 Pressure H2O, -237 Vacuum H2O or 349 Pressure H2O |
