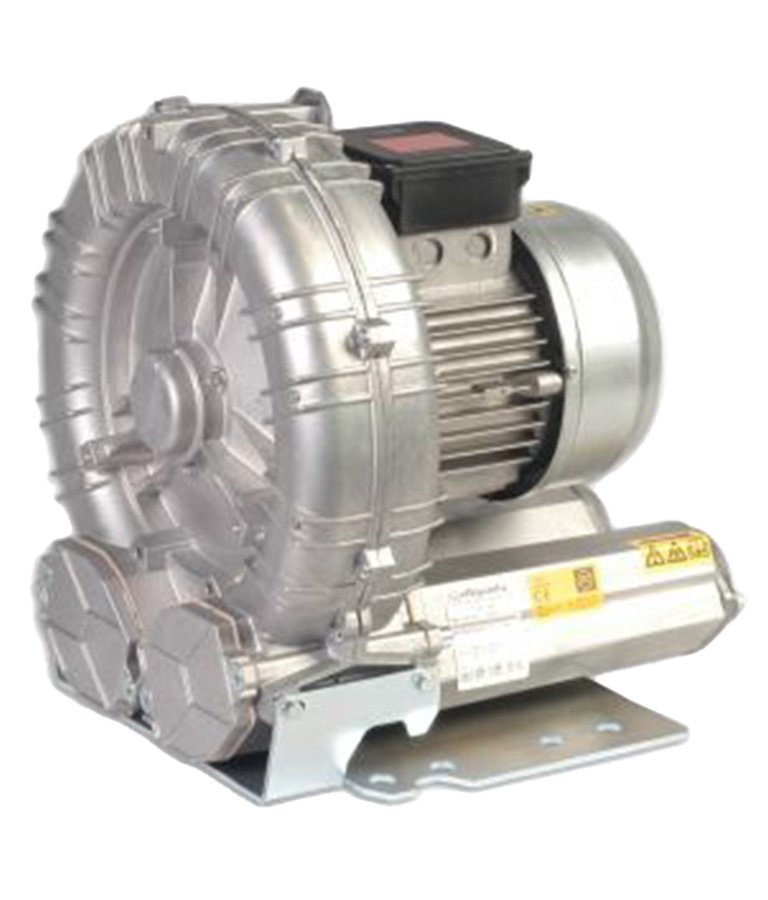

FPZ MS Series Regenerative Blower
SCL, 0.75 to 20 HP, single stage blower with TEFC cURus motor and high efficiency impeller, mountable in any position
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FPZ MS Series regenerative blower has a direct drive configuration with a a dynamically balanced impeller fitted directly on the motor shaft. Fitted motors are 2-pole, 1 or 3 phase, and rated for continuous service. Standard motors utilize class F insulation and are suitable for use with a variable speed drive (3 phase only). The MS Series is tropicalized for corrosion resistance.
Overview and Features
Features
- 0.75 to 20 HP
- 52 to 556 SCFM capacity
- 1 1/4 to 4″ NPT connection
- Aluminum alloy construction
- Smooth operation
- Maintenance free
- TEFC cURus motor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Drive Type | Bearing Driven Blower, Coupling Driven Blower |
|---|---|
| Horsepower | 0.75 HP, 1 HP, 1.5 HP, 2 HP, 3 HP, 4 HP, 5.5 HP, 6.2 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
| Capacity | 52 CFM, 98 CFM, 156 CFM, 216 CFM, 471 CFM, 556 CFM |
| Connection | 1 1/4" NPT, 1 1/2" NPT, 2" NPT, 4" NPT |
| Pressure | 64 Pressure WG, 4.7 Vacuum Hg, 95 Pressure WG, 5.9 Vacuum Hg, 58 Pressure WG, 4.3 Vacuum Hg, 85 Pressure WG, 6.3 Vacuum Hg, 120 Pressure WG, 7.4 Vacuum Hg, 52 Pressure WG, 3.8 Vacuum Hg, 80 Pressure WG, 6.6 Vacuum Hg, 120 Pressure WG, 8.1 Vacuum Hg, 40 Pressure WG, 3.7 Vacuum Hg, 64 Pressure WG, 5.2 Vacuum Hg, 110 Pressure WG, 8.1 Vacuum Hg, 122 Pressure WG, 8.9 Vacuum Hg, 50 Pressure WG, 3.7 Vacuum Hg, 80 Pressure WG, 5.9 Vacuum Hg, 141 Pressure WG, 9.6 Vacuum Hg, 30 Pressure WG, 2.4 Vacuum Hg, 50 Pressure WG, 4.4 Vacuum Hg, 111 Pressure WG, 8.1 Vacuum Hg, 161 Pressure WG, 9.6 Vacuum Hg |
| Voltage | 208-230/460/3/60, 115/208-230/1/60, 575/3/60 |
| Exterior Finish | Painted Finish, Aluminum Alloy Finish |
| Hazardous Location Approval | None, Class 1, Division 1, Group D/ Class 2 groups E,F&G XP |
