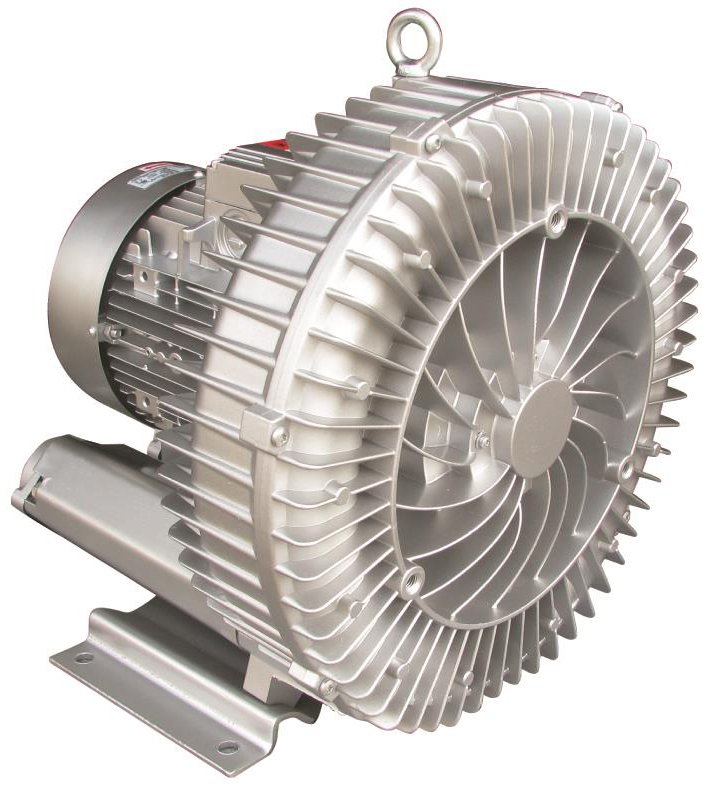

Airtech 3BA1 Series Single-Stage Regenerative Blower

Product overview

Built around your operating requirements.

Description

The Airtech 3BA1 Series single-stage regenerative blower is an ideal alternative to standard rotary vane pumps and PD/rotary lobe blowers. Its innovative lightweight and compact design adds to the ease of operation. The 3BA1 Series blower’s close-coupled construction makes it easy to install, allowing it to be quickly added to existing systems. The cool running outboard bearings increase service life.

The 3BA1 Series single-stage blower is oil-free and maintenance-free, operating at an industry-low dB(A) sound level. It has an operating capacity range of up to 960 CFM and can achieve an end vacuum of up to 20″ Hg or a pressure of 13 PSIG.

Overview and Features

Features

100% oil-free operation
Non-contacting impeller
Cooler outboard bearing design
High performance deep groove ball bearings
Rugged die-cast aluminum construction
TEFC or explosion-proof motors
IE3 premium efficient motor
UL recognized and CE compliant

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Horsepower	0.3 HP, 0.33 HP, 0.38 HP, 0.7 HP, 0.97 HP, 1.33 HP, 1.75 HP, 2 HP, 2.35 HP, 2.68 HP, 4.02 HP, 5.36 HP, 7.11 HP, 9.79 HP, 13.28 HP, 19.4 HP, 32.86 HP
Capacity	35 CFM, 42 CFM, 60 CFM, 74 CFM, 105 CFM, 125 CFM, 150 CFM, 195 CFM, 235 CFM, 300 CFM, 360 CFM, 500 CFM, 710 CFM, 960 CFM
Model	Single stage, single phase, Single stage, three phase
Pressure	-30 Vacuum H2O or 32 Pressure H2O, -45 Vacuum H2O or 45 Pressure H2O, -40 Vacuum H2O or 40 Pressure H2O, -48 Vacuum H2O or 52 Pressure H2O, -72 Vacuum H2O or 76 Pressure H2O, -48 Vacuum H2O or 48 Pressure H2O, -64 Vacuum H2O or 64 Pressure H2O, -68 Vacuum H2O or 80 Pressure H2O, -28 Vacuum H2O or 28 Pressure H2O, -44 Vacuum H2O or 40 Pressure H2O, -72 Vacuum H2O or 72 Pressure H2O, -104 Vacuum H2O or 116 Pressure H2O, -68 Vacuum H2O or 68 Pressure H2O, -80 Vacuum H2O or 76 Pressure H2O, -36 Vacuum H2O or 32 Pressure H2O, -64 Vacuum H2O or 60 Pressure H2O, -85 Vacuum H2O or 76 Pressure H2O, -96 Vacuum H2O or 92 Pressure H2O, -128 Vacuum H2O or 124 Pressure H2O, -32 Vacuum H2O or 32 Pressure H2O, -52 Vacuum H2O or 48 Pressure H2O, -84 Vacuum H2O or 76 Pressure H2O, -120 Vacuum H2O or 112 Pressure H2O, -141 Vacuum H2O or 161 Pressure H2O, -36 Vacuum H2O or 36 Pressure H2O, -108 Vacuum H2O or 104 Pressure H2O, -60 Vacuum H2O or 56 Pressure H2O, -153 Vacuum H2O or 169 Pressure H2O, -32 Vacuum H2O or 28 Pressure H2O, -72 Vacuum H2O or 64 Pressure H2O

Horsepower

0.3 HP, 0.33 HP, 0.38 HP, 0.7 HP, 0.97 HP, 1.33 HP, 1.75 HP, 2 HP, 2.35 HP, 2.68 HP, 4.02 HP, 5.36 HP, 7.11 HP, 9.79 HP, 13.28 HP, 19.4 HP, 32.86 HP

Capacity

35 CFM, 42 CFM, 60 CFM, 74 CFM, 105 CFM, 125 CFM, 150 CFM, 195 CFM, 235 CFM, 300 CFM, 360 CFM, 500 CFM, 710 CFM, 960 CFM

Model

Single stage, single phase, Single stage, three phase

Pressure

-30 Vacuum H2O or 32 Pressure H2O, -45 Vacuum H2O or 45 Pressure H2O, -40 Vacuum H2O or 40 Pressure H2O, -48 Vacuum H2O or 52 Pressure H2O, -72 Vacuum H2O or 76 Pressure H2O, -48 Vacuum H2O or 48 Pressure H2O, -64 Vacuum H2O or 64 Pressure H2O, -68 Vacuum H2O or 80 Pressure H2O, -28 Vacuum H2O or 28 Pressure H2O, -44 Vacuum H2O or 40 Pressure H2O, -72 Vacuum H2O or 72 Pressure H2O, -104 Vacuum H2O or 116 Pressure H2O, -68 Vacuum H2O or 68 Pressure H2O, -80 Vacuum H2O or 76 Pressure H2O, -36 Vacuum H2O or 32 Pressure H2O, -64 Vacuum H2O or 60 Pressure H2O, -85 Vacuum H2O or 76 Pressure H2O, -96 Vacuum H2O or 92 Pressure H2O, -128 Vacuum H2O or 124 Pressure H2O, -32 Vacuum H2O or 32 Pressure H2O, -52 Vacuum H2O or 48 Pressure H2O, -84 Vacuum H2O or 76 Pressure H2O, -120 Vacuum H2O or 112 Pressure H2O, -141 Vacuum H2O or 161 Pressure H2O, -36 Vacuum H2O or 36 Pressure H2O, -108 Vacuum H2O or 104 Pressure H2O, -60 Vacuum H2O or 56 Pressure H2O, -153 Vacuum H2O or 169 Pressure H2O, -32 Vacuum H2O or 28 Pressure H2O, -72 Vacuum H2O or 64 Pressure H2O
