All-Star RBH8 Series Regenerative Blower
Regenerative blower with the capacity range between 400 and 600 SCFM and power range of up to 25 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

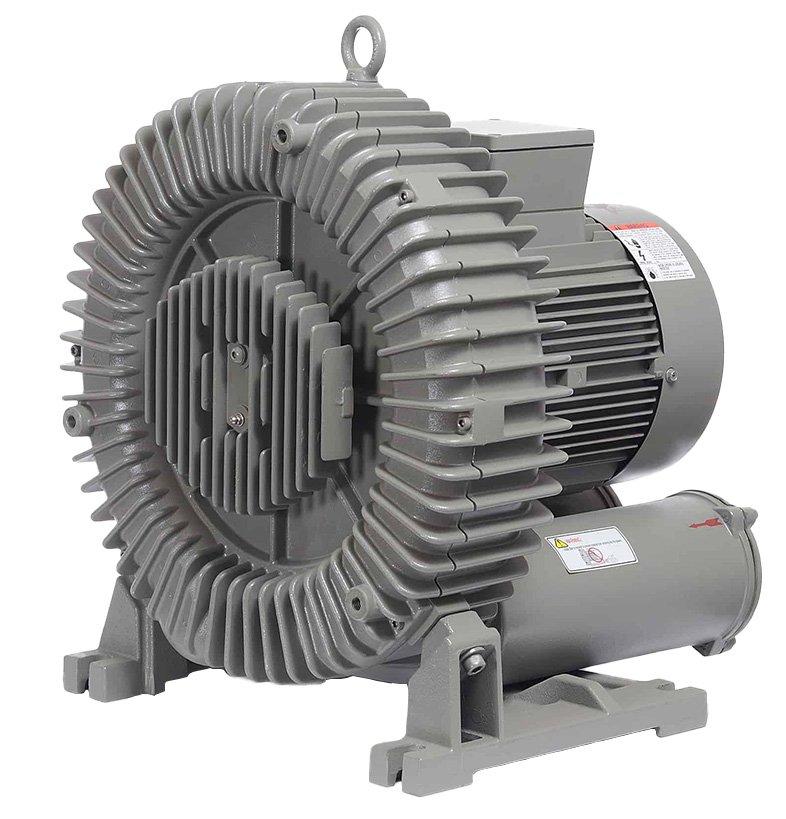

The All-Star RHB8 Series are regenerative blowers with a power range of 1 to 25 HP, designed for a wide range of applications. It can handle both pressure and vacuum tasks while operating quietly – producing 58 to 82db(A) of noise depending on function. It is oil-free, eliminating the need for unpleasant odors. Additionally, it is non-pulsating and features a filtered air supply, aiding in the smoothness of the operation.
It has a straddle-mounted design, helping with installation and maintenance. The blower can either come with a two stage, three phase motor or completely motorless. It can be operated on either 50 or 60Hz, with some performance differences between the two. This blower is ideal for usages such as wastewater treatment, pneumatic conveying, and other industrial applications.
Overview and Features
Features
- IP 54 protection rating
- Class H insulation 1.15 service factor
- Performance tested ANSI/AMCA210-85
- 40°C ambient
- 1 to 25 HP options
- 400 to 600 SCFM capacity range
- 58 to 82db(A) noise level
- 2.5″ NPT inlet and outlet
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Stage Options | Single stage, Two stage |
|---|---|
| Motor Options | Motorless, With motor |
| Capacity Range Options | Up to 400 SCFM, Up to 410 SCFM, Up to 600 SCFM |
| Power Rating | Up to 11.5 HP, up to 25 HP, Up to 20 HP, 8.5 HP (6.3kW), 11.5 HP (8.6kW), 17.5 HP (13kW), 25 HP (19kW) |
| Voltage Options | Not available with current selection, 208-230/460/3/60, 575/3/60 |
