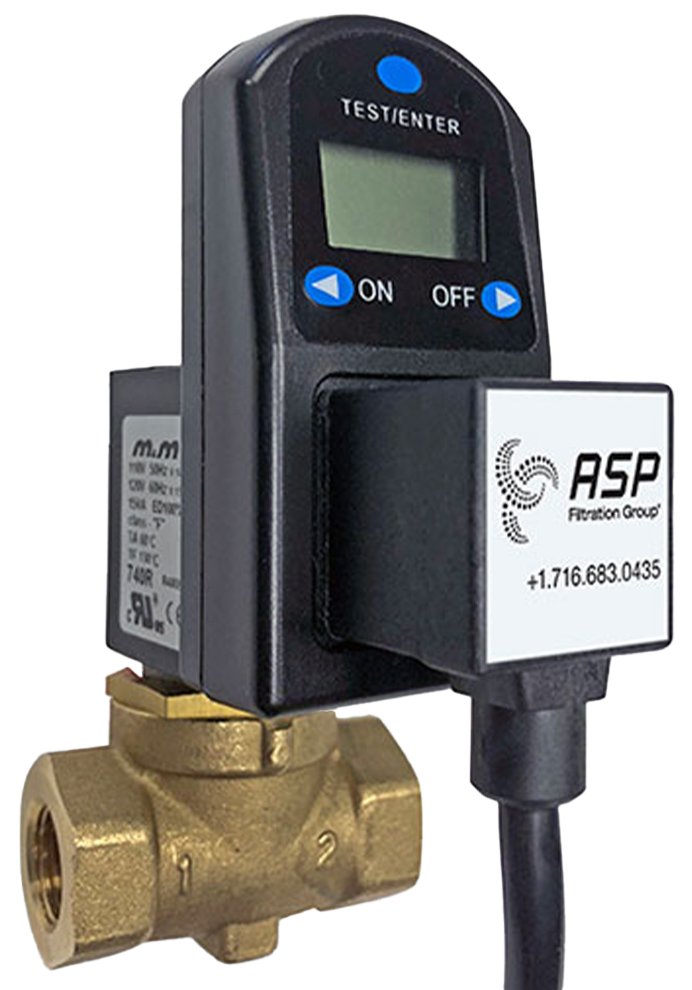

Air System Products dDVT720 Series Digital Timer Drain
Equipped with a digital timer interface for programming a wide range of exact open and close valve settings
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Air System Products dDVT720 Series Digital Timer Drain features an LED display with backlight for easy reading, precise programming with ON and OFF buttons, and indicator lights that display valve open and valve closed program status. Additionally, the compact and durable housing ensures longevity.
The dDVT720 drain comes with a versatile digital timer that allows for a wide range of adjustable open and closed drain valve settings. You can program the timer for valve open times between 0.5 and 99 seconds, and valve closed times between 0.5 minutes and 60 minutes.
Overview and Features
Features
- 1/4″, 3/8″, and 1/2″ inlet/outlet sizes
- Extended Off cycle times to 99 hours.
- Test button
- Adjustable valve open times and close times (0.5 to 99 seconds)
- LED display with backlight
- Available with optional valve guard/strainer
- 120VAC operating voltage standard
- 24VAC and 240VAC options available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | 1/4" valve (1.4" wide valve body), 1/4" valve (2.2" wide valve body), 3/8" valve, 1/2" valve |
|---|---|
| Voltage | 120 VAC, 24 VAC, 240 VAC |
| Valve Guard | None, Valve guard/strainer for 1/4″ valve, Valve guard/strainer for 3/8″ valve, Valve guard/strainer for 1/2″ valve |
