Air System Products

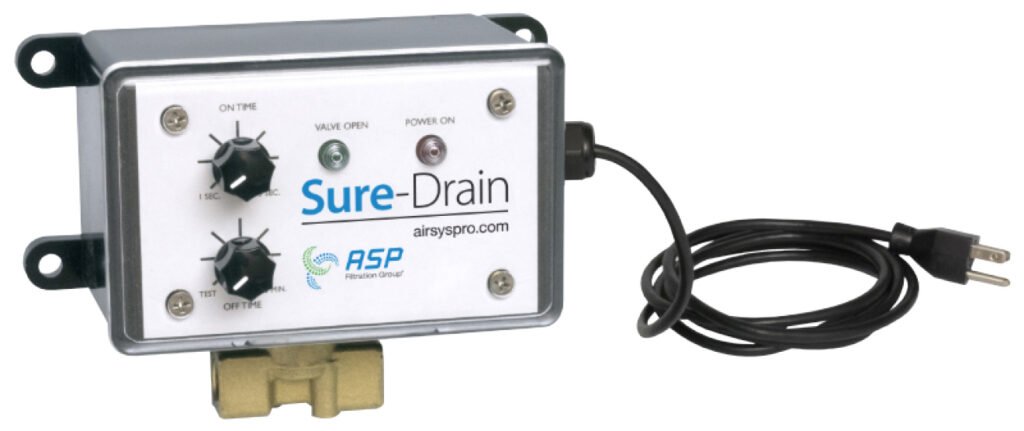

Air System Products Sure-Drain Series Timer Drain
Adjustable solenoid-style timer drain, removes oil and water from compressed air systems
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Air System Products Sure-Drain Series Timer Drain offers users the convenience of effortlessly adjusting both the drain frequency and the length of the drain cycle, ensuring optimal maintenance control. Its user-friendly design allows for a quick glance to easily determine the drain’s status. The drain is rugged and non-corrosive, guaranteeing a reliable and long-lasting solution. Its flexible positioning adds to its versatility, accommodating various setup requirements. Engineered to cater to diverse needs, the Sure-Drain Series is suitable for a wide range of flows and applications. Whether for filters, air receivers, air dryers, separators, or aftercoolers, this adaptable solution stands ready to meet a variety of industrial demands.
Overview and Features
Features
- Dual-adjustable solid-state timer
- Drain cycle frequency: 5 secs to 50 mins
- Drain cycle time: 1 to 15 secs
- Pilot lights for power (red) and valve open (green)
- NEMA 4X enclosure
- Mounting tabs for wall or panel mount
- Available in 1/4″ and 1/2″ sizes
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Valve Size | 1/4″ NPT, 1/2″ NPT |
|---|---|
| Pressure | 200 PSI, 300 PSI, 500 PSI |
| Voltage | 115V, 240V |
| Y-Strainer | None, Y-Strainer, 1/4" valve |
