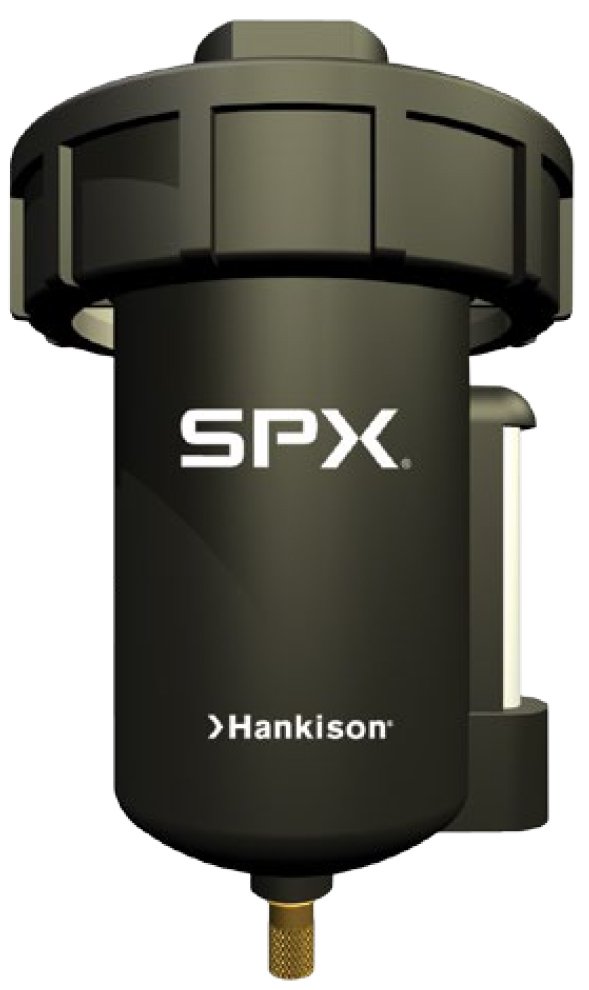

Hankison Snap-Trap Series Mechanical Drain
Economical drain designed for light to medium duty use
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison Snap-Trap Series Mechanical Drain automatically discharges water, oil and oil/water emulsions from your compressed air system. The float-activated pilot valve operates on demand allowing an air-powered piston to open a large discharge port and is level activated.
Overview and Features
Features
- Discharge 0.04 pt, 20 cc per operation
- Maximum working pressures to 250 PSIG
- 125°F maximum inlet temperature
- Durable, self-bailing solid surface float
- Resilient pilot valve seat
- Discharge port with screen protection
- Soft-seated discharge port
- Viton float mechanism – impervious to synthetic lubricants
- 1/2″ NPT connection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection Type | 1/2" NPT, top, 1/2" NPT, top or side |
|---|
