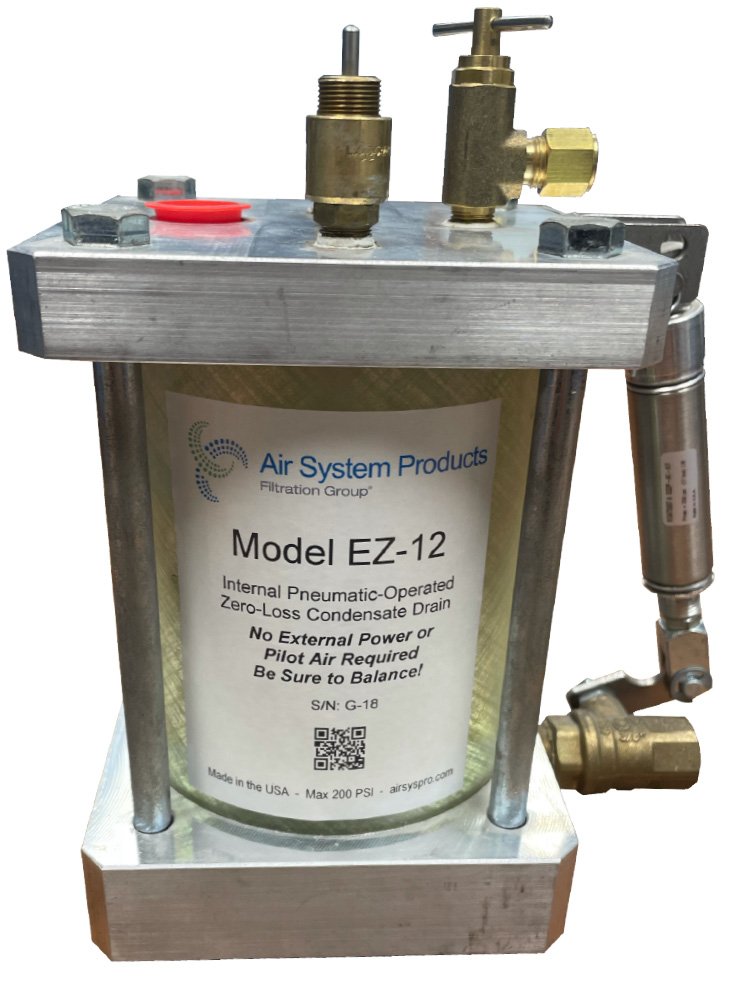

Air System Products EZ-Drain Zero Loss Drain
Fully automatic zero loss drain that requires no external power utility
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Air System Products EZ-Drain Zero Loss Drain is designed to be easily installed, making it a convenient choice for various applications. With no need for an external power utility, it offers both flexibility and cost-effectiveness. Maintenance becomes hassle-free, as the absence of strainers eliminates the need for regular cleaning. The incorporation of an easy-to-see condensate level “quick check” feature enhances operational efficiency. The EX-Drain design facilitates rapid discharge, safeguarding against potential plugging by contaminants. The EZ-Drain can be implemented in a variety of applications across various components such as aftercoolers, receivers, dryers, filters, or drip legs.
Overview and Features
Features
- Two 1/2″ NPT inlet connections
- 3/8″ NPT outlet connection
- 200 PSI pressure rating
- 12 ounces per cycle discharge rate
- Materials:
- Composite reservoir
- Aluminum heads
- Bronze valve with stainless steel ball and stem
- Stainless steel float
- Viton seal
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
