ELGi EN Series Rotary Screw Air Compressor
4 to 20 HP configurations available, 5 year warranty, load-no load and VFD, includes start up at jobsite by ELGi trained factory technician
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi EN Series rotary screw air compressor is designed to provide low carbon footprint along with high reliability and low maintenance requirements. The air filtration system keeps the compressor’s internal components clean, maintaining optimum cooling efficiency and low oil-fill, resulting in a longer life span of the machine.
The EN Series features the Neuron XT controller which provides malfunction alarms, safety shutdowns, and easy-to-use service indications while allowing the user to monitor and control the machine’s performance.
The EN Series air-oil separation utilizes the impact and deceleration process. The impact of the air-oil mixture in the circumferential tank area prompts deceleration action to remove the oil particles from the air. The air with minor traces of oil then enters the separator for further purification.
Overview and Features
Features
- TEFC NEMA premium efficiency motor
- 4 to 20 HP options
- 13.1 to 81.5 CFM capacities (depending on selection)
- 100, 125, 150, 175 PSI options available

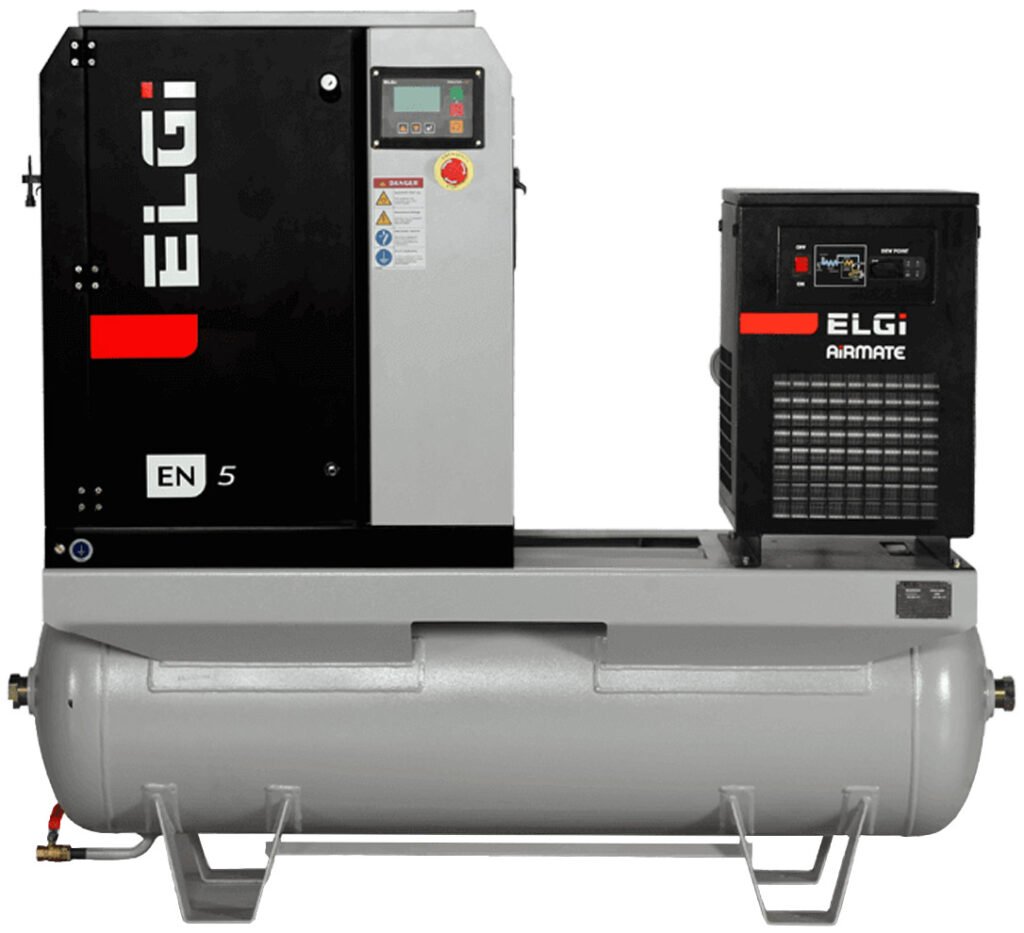

- Base or tank mounted models
- Tank mounted available with EGRD dryer or desiccant dryer with filters
- 60 gallon (4 to 7.5 HP) or 120 gallon (10 to 20 HP) tank options
- 100% rated duty cycle
- Variable speed drive option available (10 to 20 HP only)
- Auto belt tensioner of VFD models
- Impact and deceleration process oil separation
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Drive | Fixed speed drive, Variable speed drive |
|---|---|
| Horsepower | 4 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
| Capacity | 13.5 CFM, 13.1 CFM, 21.7 CFM, 19.3 CFM, 17.2 CFM, 15.4 CFM, 29.9 CFM, 26.5 CFM, 24.2 CFM, 21 CFM, 42.5 CFM, 38.5 CFM, 34 CFM, 30 CFM, 64 CFM, 55 CFM, 51.5 CFM, 45 CFM, 81.5 CFM, 68 CFM, 61.5 CFM, 58 CFM, 41.5 CFM, 38.7 CFM, 60 CFM, 49.5 CFM, 75 CFM, 63.4 CFM, 59.4 CFM, 54.6 CFM |
| Pressure | 100 PSI, 125 PSI, 150 PSI, 175 PSI |
| Configuration | Base mount, Tank Mount |
| Tank Size | None, 60 gallon, 120 gallon |
| Dryer Options | None, No Dryer, tank timer drain only, With EGRD series refrigerated dryer and filters, With desiccant dryer and filters |
| Voltage | 200-208/3/60, 230/3/60, 460/3/60, 220/1/60 |
| Startup | None, Include Startup |
