Vanair Manufacturing

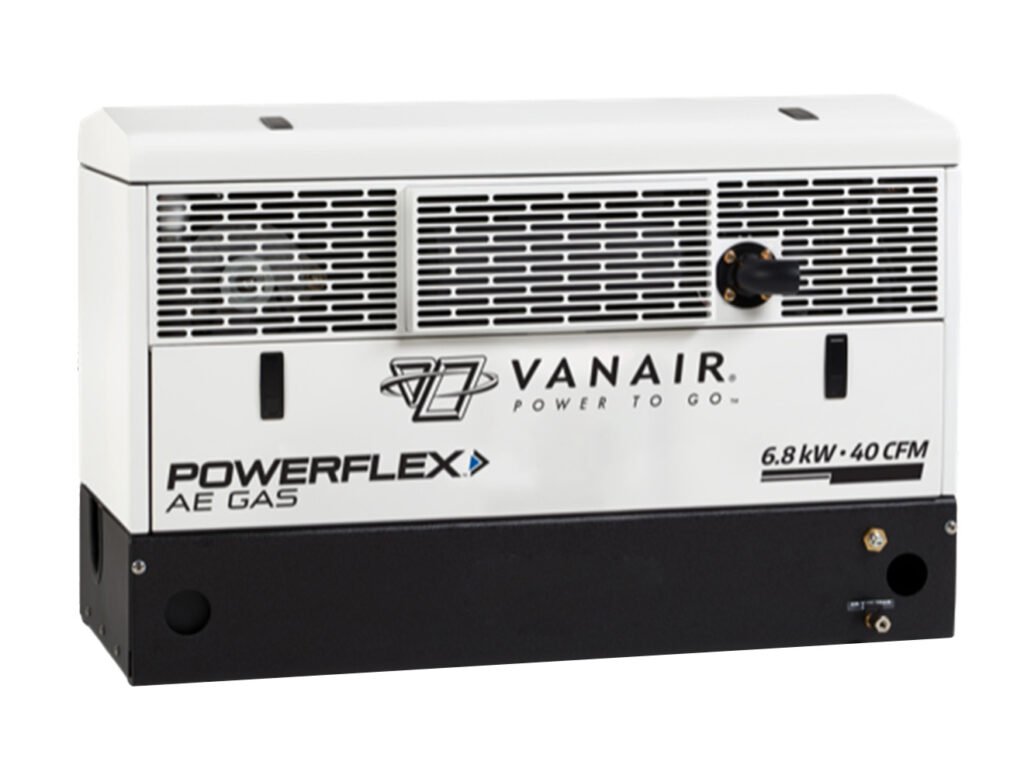

Vanair Powerflex AE Series Gas Rotary Screw Air Compressor with Generator
26.5 HP compressor with air cooled EFI Kohler engine and 6.8 kW generator
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
The Vanair Powerflex AE Series pairs a gas rotary screw air compressor with a brushless 6,800 watt AC generator on one base mount. A 26.5 HP EFI air-cooled engine supplies air on demand at 40 CFM and a 150 PSI pressure rating, making it suitable for general construction, monument engraving, service vehicles and roadside repairs.
What you get
- Controls where you want them – the remote control panel offers engine start/stop, engine fault, hour meter and generator and compressor on/off switches.
- Quicker servicing – hinged top, removable front panel and a spin on air and oil separator element.
- Protected operation – shutdowns for low engine oil, open service access door, engine over temperature, high temperature and high pressure.
- Wide working range – -20 to 110°F ambient temperature range.
- Generator power – 6.8 kW at 120/240 V.
Pairs well with
- Hose – air hose for tools served by the 40 CFM output.
- Hose Reels – hose reels to keep hose organized on service vehicles.
- Pneumatic Tools – pneumatic tools for construction and repair work.
- Lubricants – lubricants for the rotary screw compressor.
Frequently asked questions
Does it need its own fuel tank?
It can run without one, using chassis fuel, or you can order the fuel tank option.
What remote harness lengths are offered?
6′, 10′, 14′, 18′, 22′ and 26′.
Which applications suit it?
General construction, monument engraving, service vehicles and roadside repairs are listed. Send us your tool list and we will confirm the fit.
Worldwide supply. Send us your voltage, phase and frequency, the destination postal code, and your pressure and flow requirements. Lead time, shipping and warranty terms are confirmed in your quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Horsepower | 26.5 HP |
| Capacity | 40 CFM |
| Fuel Tank | Without (utilizes chassis fuel), Fuel tank |
| Remote Control Panel Harness | 6', 10', 14', 18', 22', 26' |
