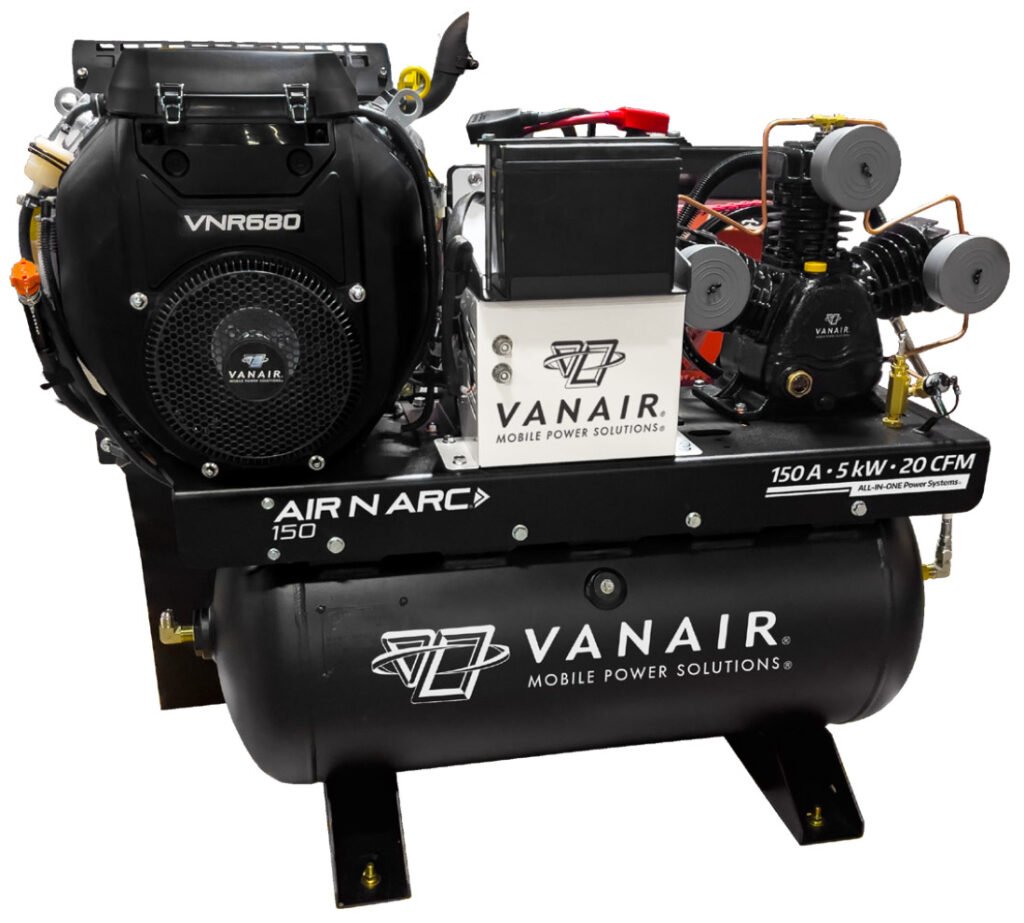

Vanair Air N Arc 150 Gas Powered Piston Air Compressor with Generator and Welder
All in one power system with 5 kW peak generator and 150 AMP welder, 16 or 20 hp models to choose from.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Vanair Air N Arc 150 gas powered piston air compressor with generator and welder provides you with five forms of power in one compact unit. This allows you to save space and weight on your vehicle. Providing up to 190 AMPs of welding power and up to 5 kW of generator performance, the Air N Arc 150 is available in 16 or 20 HP configurations with either base mounting or mounted atop an air receiver tank to meet your requirements.
Overview and Features
Features
- Kohler 16 HP or Vanair VNR680 20 HP motor options
- Electric start
- Belt driven
- Compressor:
- Reciprocating
- 20 CFM at 150 PSI
- Cast iron pump with 3 cylinder head design
- Factory set at 130 PSI, can be adjusted up to 150 PSI
- Generator:
- 5 kW peak, 4.2 kW continuous
- 60 Hz, single phase
- True two-generator system
- Brushless design (AC)
- Smooth wave for minimal distortion
- Two 120V outlets and one 240V outlet
- Welder:
- 100% variable completely controllable
- Independent welding generator
- CV on remote panel machines (20 HP)
- Safe multi-function
- Auto throttle control
- Available as a base mount or tank mounted configuration
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Tank mount |
|---|---|
| Horsepower | 16 HP (Kohler motor), 20 HP (Vanair VNR680 motor) |
| Capacity | 20 CFM at 150 PSI |
| Air Tank Size | None, 10 gallon, 30 gallon |
| Fuel Tank Size | 1.9 gallon, None, 11.5 gallon |
| Remote Control Panel Harness | None, 6ft connection harness, 10ft connection harness, 14ft connection harness, 18ft connection harness |
| Cold Weather Kit | None, 12V DC, 120V AC |
| Weld Cable Set | None, 25ft 1/0, 50ft 1/0 |
| Weld Cable Reel | None, Manual rewind with 50ft leads, 400 AMP, Spring forward with 50ft leads, 400 AMP |
| Battery Boost Cables | None, 20ft, 2GA with quick connect ends |
