Vanair Manufacturing

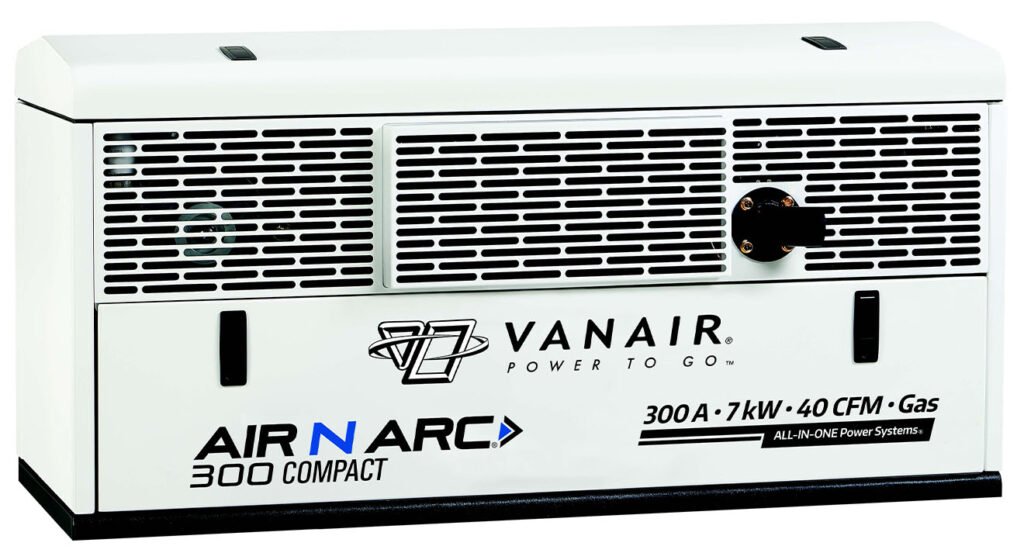

Vanair Air N Arc 300 Compact Gas Rotary Screw Compressor with Generator/Welder
Gas powered 40 CFM rotary screw air compressor with 7 kW generator and 300 AMP welder for under box type body mounting
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Vanair Air N Arc 300 Compact Gas Rotary Screw Air Compressor with Generator/Welder maintains the full functionality of five power sources and the multi-function capability in one unit. The Air N Arc 300 Compact is specifically designed to be mounted under a box type body. Coming in 7.5″ shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank, this compact unit provides the flexibility and space-saving capability to mount the unit outside the body of the vehicle while still maintaining ground clearance.
Overview and Features
Features
- 7.5 inches shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank
- Kohler 26.5 HP EFI, air cooled motor
- Electric start
- Glow plugs
- Belt driven
- Compressor:
- Rotary screw
- 40 CFM at 150 PSI
- 175 PSI max pressure
- Generator:
- 7 kW peak, 4.2 kW continuous
- 60 Hz, single phase
- Two 120V and one 240V outlets
- Independent AC generator
- Brushless design
- Welder:
- High Frequency DC Welding
- 270 AMPs at 100% duty cycle
- 40 to 300 AMPs Operating Range
- 15 to 30V range
- Independent DC welder
- Auto speed control
- CV MIG capabilities
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 26.5 HP |
|---|---|
| Capacity | 40 CFM at 150 PSI |
| Remote Control Panel Harness | None, 6ft connection harness, 10ft connection harness, 14ft connection harness, 18ft connection harness |
| Cold Weather Kit | None, 12V, Air Compressor Oil, Engine Oil Pan, and Air Inlet Heater |
| Weld Cable Set | None, 25ft 1/0, 50ft 1/0 |
| Weld Cable Reel | None, Manual rewind with 50ft leads, 400 AMP, Spring forward with 50ft leads, 400 AMP |
| Battery Boost Cables | None, 25ft, 2GA with quick connect ends |
