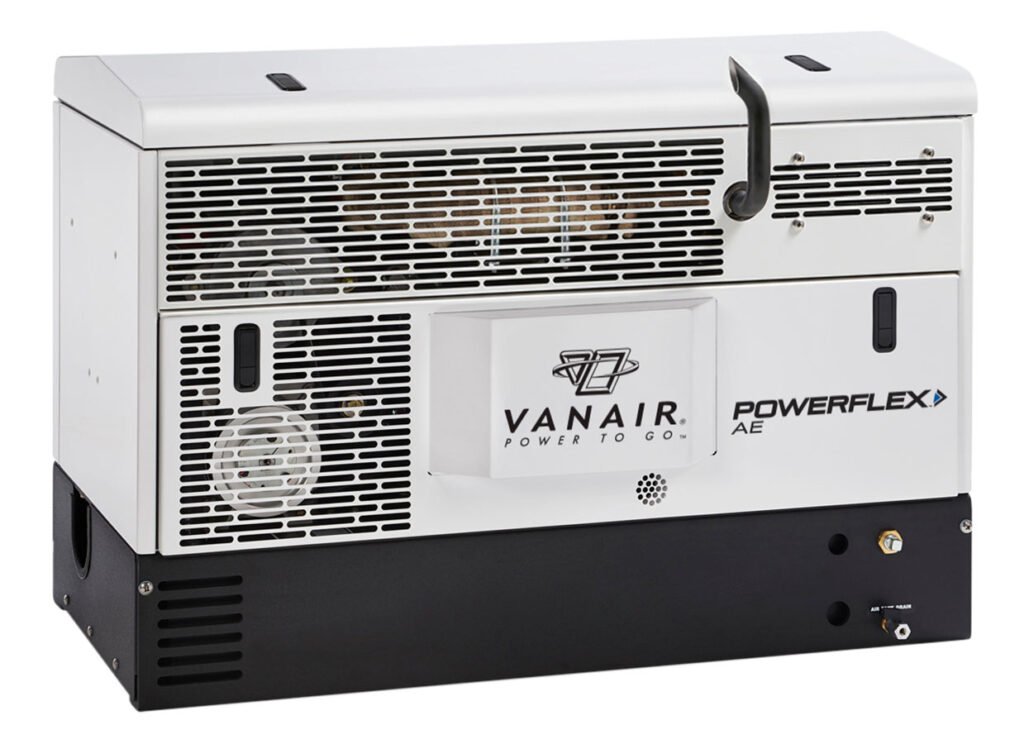

Vanair Powerflex AE Series Diesel Rotary Screw Air Compressor with Generator
Belt-driven compressor with Kubota Tier 4 final engine and 6,000 kW generator
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
The Vanair Powerflex AE Series puts air-on-demand and AC power on one service truck chassis. A 25 HP Kubota Tier 4 final engine belt-drives a rotary screw compressor rated at 40 CFM at high speed and a 150 PSI pressure rating, enough to power up to 1″ impact wrench. A brushless 6,800 watt generator supplies 120/240 V.
What you get
- Two power sources – compressed air and electricity from one engine.
- Convenient control – a remote panel with engine start/stop, fault, hour meter and generator/compressor switches.
- Fuel flexibility – run from chassis fuel or add a fuel tank.
- Cold climates – a cold weather package is available.
- Service access – hinged top, removable front panel and spin on separator element.
Pairs well with
- Pneumatic Tools – impact wrenches and air tools.
- Hose – hose for the 1/2″ FNPT discharge.
- Hose Reels – truck reels.
- Lubricants – compressor oil.
Frequently asked questions
What is the ambient range?
-20 to 110°F.
What is the generator output?
A brushless 6,800 watt (6.8 kW) AC generator at 120/240 V.
What size impact wrench can it run?
Vanair states the AE Series can power up to a 1″ impact wrench.
What safety features are included?
An alternator failure indicator, air pressure safety relief valve and high temperature and high pressure shutdowns.
Worldwide supply. Send us your voltage, phase and frequency, the destination postal code, and your pressure and flow requirements. Lead time, shipping and warranty terms are confirmed in your quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Horsepower | 25 HP |
| Capacity | 40 CFM |
| Fuel Tank | Without (utilizes chassis fuel), Fuel tank |
| Cold Weather Package | None, With package, less fuel tank |
| Remote Control Panel Harness | 6', 10', 14', 18', 22', 26' |
