Vanair Utility Series Rotary Screw Air Compressor
Tier 4 final-compliant utility mount air compressor with flow rates up to 260 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

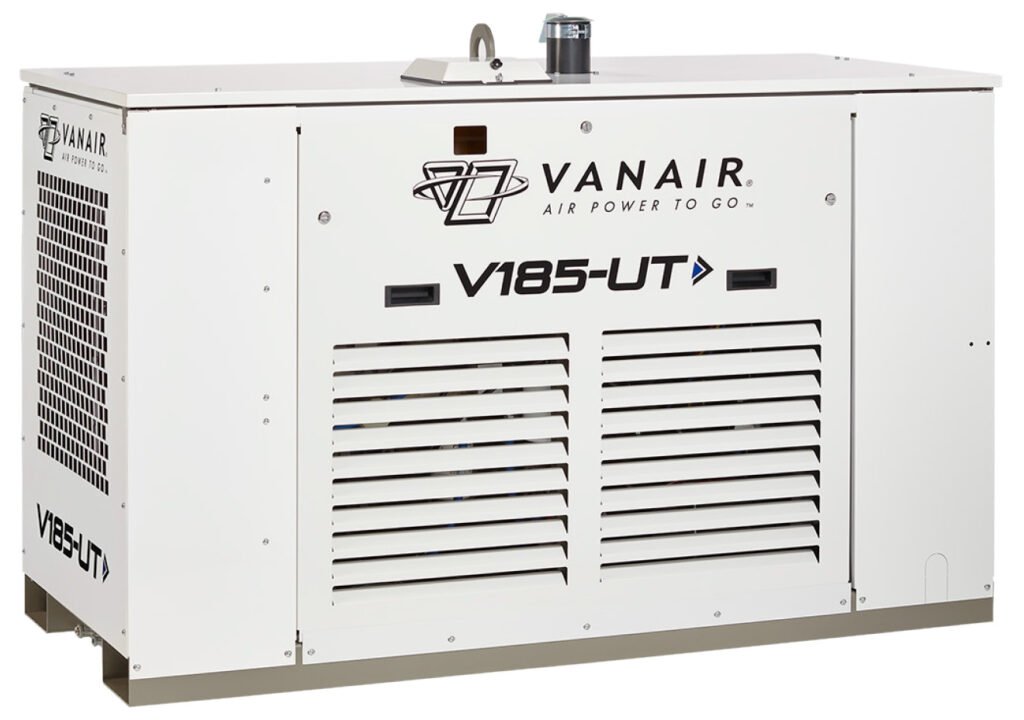

The Vanair Utility Series rotary screw air compressor is a tier 4 final-compliant engine driven, utility mount, rotary screw air compressor, available in 185 CFM, 210 CFM, and 260 CFM capacities to meet you needs. The Utility Series is usually cross-mounted along the bulkhead of the body of the vehicle. They come equipped with a waterproof eye level and curbside digital control panel for easy accessibility. The corrosion resistant canopy has fork pockets and a balanced single point lifting bail for easy installation and removal from the vehicle.
Overview and Features
Features
- Engines:
- 185 CFM : Isuzu
- 210 and 260 CFM: John Deere
- 108mm diameter twin screw airend
- Side-by-side coolers (compressor and engine)
- Automatic 0 to 100% capacity control
- Automatic shutdown and protection system
- Automatic blowdown valve
- Unloaded starting
- Two-stage dry type air filter
- Two 3/4” service connections
- Available with or without fuel tank
- Cold weather kit option available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | With fuel tank, No fuel tank |
|---|---|
| Capacity | 185 CFM, 210 CFM, 260 CFM |
| Pressure | 100 PSI, 150 PSI |
| Fuel Tank Size | 30 gallon, 25 gallon, None, 35 gallon |
| Cold Weather Kit | None, Add cold weather kit |
