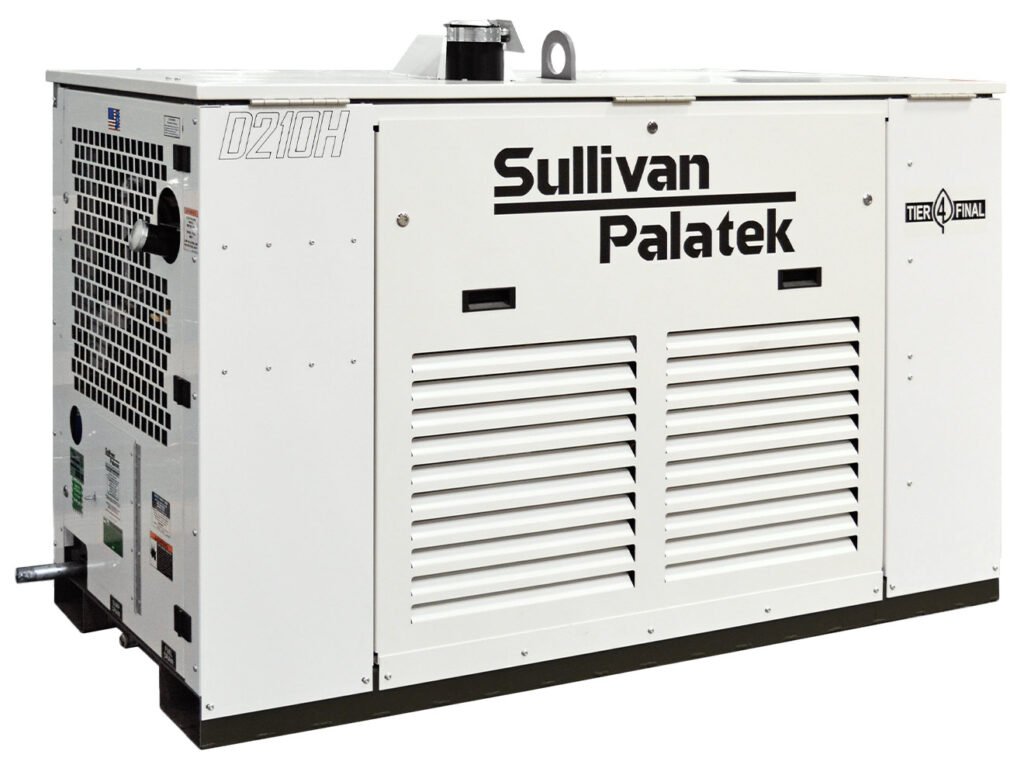

Sullivan Palatek D210UHJD5 Portable Diesel Driven Rotary Screw Air Compressor

210 CFM at 100/150 PSIG, truck-mounted air compressor, John Deere 4045T1530 Tier 4 Final Stage V Diesel engine

Diesel Driven Air CompressorsEngine Driven Air CompressorsPrice on request

Request a tailored quote

Tell our team about your pressure, flow, voltage, and installation requirements.

Request a Quote

Product overview

Built around your operating requirements.

The Sullivan Palatek D210UHJD5 is a truck-mounted rotary screw compressor delivering 210 CFM at 100/150 PSIG, aimed at utility fleets that need higher-pressure capability. It runs on a 74 HP John Deere 4045T1530 Tier 4 Final Stage V diesel engine and is controlled by the curbside Sullivan-Palatek Electronic Controller (SPEC).

What you get

Higher pressure available – 210 CFM at 100 or 150 PSIG.
Full information – SPEC readouts for temperatures, fuel level, engine hours, oil pressure and RPM.
Protected operation – automatic shutdown and protection, automatic blowdown and unloaded starting.
Long runtime – a 35 gallon steel fuel tank.

Sizing example

Total tool demand and add around 10% for growth and leaks. About 180 CFM becomes roughly 198 CFM, within the 210 CFM rating. Send us your figures and we will confirm the right size in your quotation.

Pairs well with

Hose Reels – truck-mounted reels.
Hose – tool hose.
Pneumatic Tools – tools for utility work.
Lubricants – compressor oil.

Frequently asked questions

Which emission standard does the engine meet?

Tier 4 Final Stage V.

How is intake air filtered?

With a two-stage dry type air filter.

How do I size it for my truck?

Send us your tool list and required pressure and we will confirm whether this model fits your demand.

Worldwide supply. Send us your voltage, phase and frequency, the destination postal code, and your pressure and flow requirements. Lead time, shipping and warranty terms are confirmed in your quotation.
