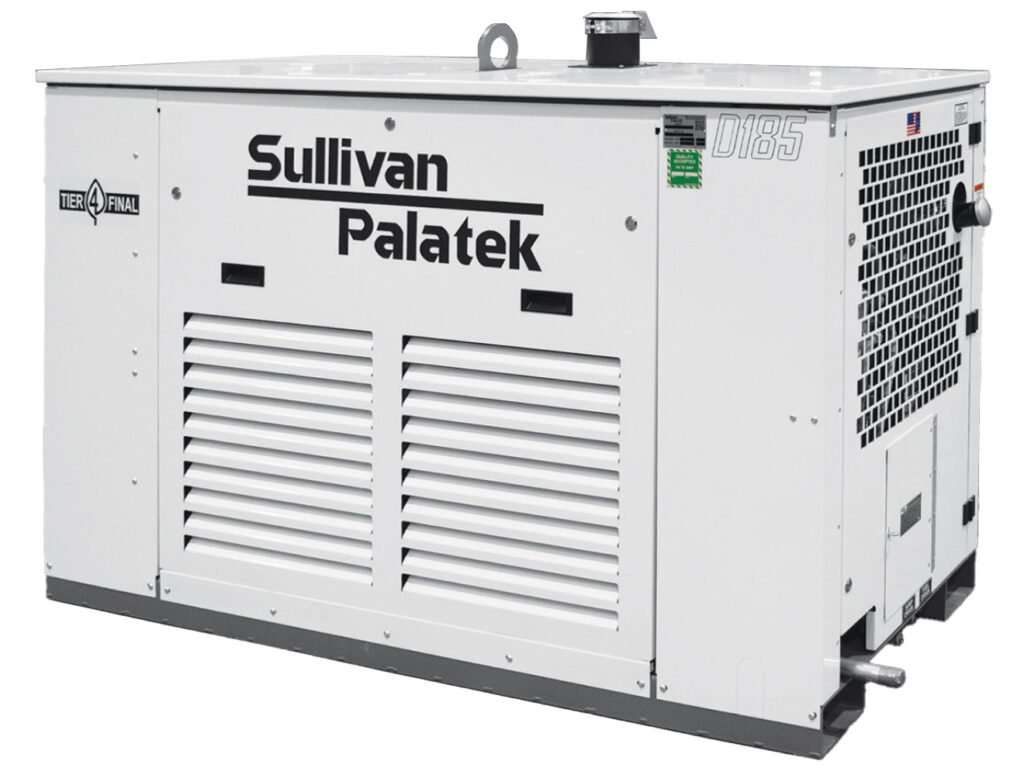

Sullivan Palatek D185UIZ Portable Diesel Driven Rotary Screw Air Compressor

Product overview

Built around your operating requirements.

Compact and easy to reach, the Sullivan Palatek D185UIZ is a truck-mounted rotary screw compressor for utility and service fleets. It delivers 185 CFM at 100 PSIG from a 49 HP ISUZU 4LE2T Tier 4 Final diesel engine. A curbside Sullivan-Palatek Electronic Controller (SPEC) shows compressor, coolant and engine temperatures, fuel level, engine hours, oil pressure and RPM.

What you get

• Clear diagnostics – the SPEC digital display covers the key engine and compressor readings.
• Cold-weather starts – automatic glow plugs and unloaded starting.
• Protection – automatic shutdown and protection system plus automatic blowdown valve.
• Cooling and filtration – side by side coolers and a two-stage dry type air filter.
• Hook-up – two 3/4″ service connections and a 30 gallon steel fuel tank.

Sizing example

Add the CFM of tools in use together at 100 PSIG and around 10% for growth and leaks. About 165 CFM becomes roughly 182 CFM, within the 185 CFM rating. Send us your figures and we will confirm the right size in your quotation.

Pairs well with

• Hose Reels – truck-mounted reels for quick hose access.
• Hose – hose for the 3/4″ service connections.
• Pneumatic Tools – tools for utility crews.
• Lubricants – compressor oil.
