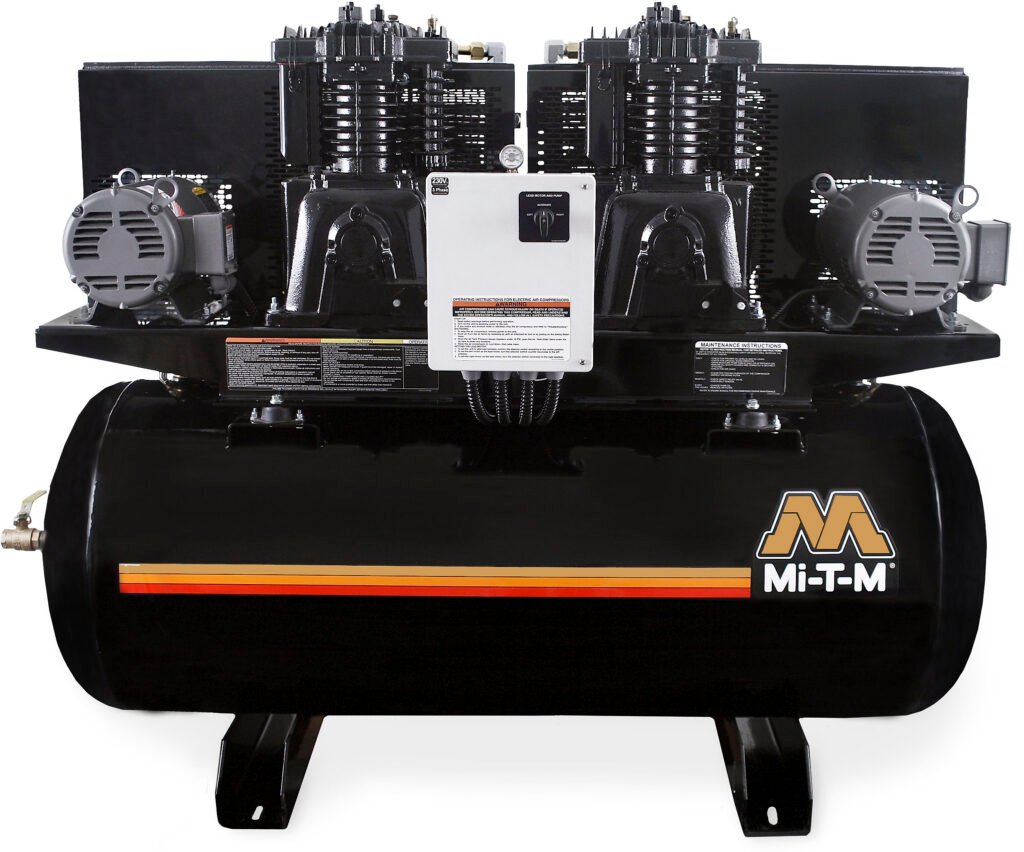

Mi-T-M, ACD-Series 5 & 7.5 HP Industrial Two-Stage Duplex Piston Air Compressors
The ACD-Series horizontal 5 & 7.5 HP duplex air compressors can be installed out of the way in workshops and service bays where compressed air is a required utility.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
OPTIONAL M-SERIES INCLUDES:
Air-Cooled After Cooler
Low Oil Sensor
Tank Drain
Vibration Isolator Pads
Overview and Features
Features
- Cast iron compressor pump
- Splash lubricated
- Industrial low RPM motor
- Powder coated ASME receiver tank
- 3/16″ base plate to reduce vibration
- ASME safety valves
- Tank pressure gauge
- ASME Boiler and Pressure Vessel Code – U
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Voltage | 230/1/60, 200/3/60, 230/3/60, 460/3/60 |
|---|---|
| Horsepower | 5 HP, 7.5 HP |
| Capacity | 36 CFM, 46.4 CFM |
| Tank Size | 120 Gallon |
| Tank Orientation | Horizontal |
| Optional M-Series | None, M-Series includes: air-cooled after cooler, low oil sensor, tank drain, vibration isolator pads |
