FS-Curtis

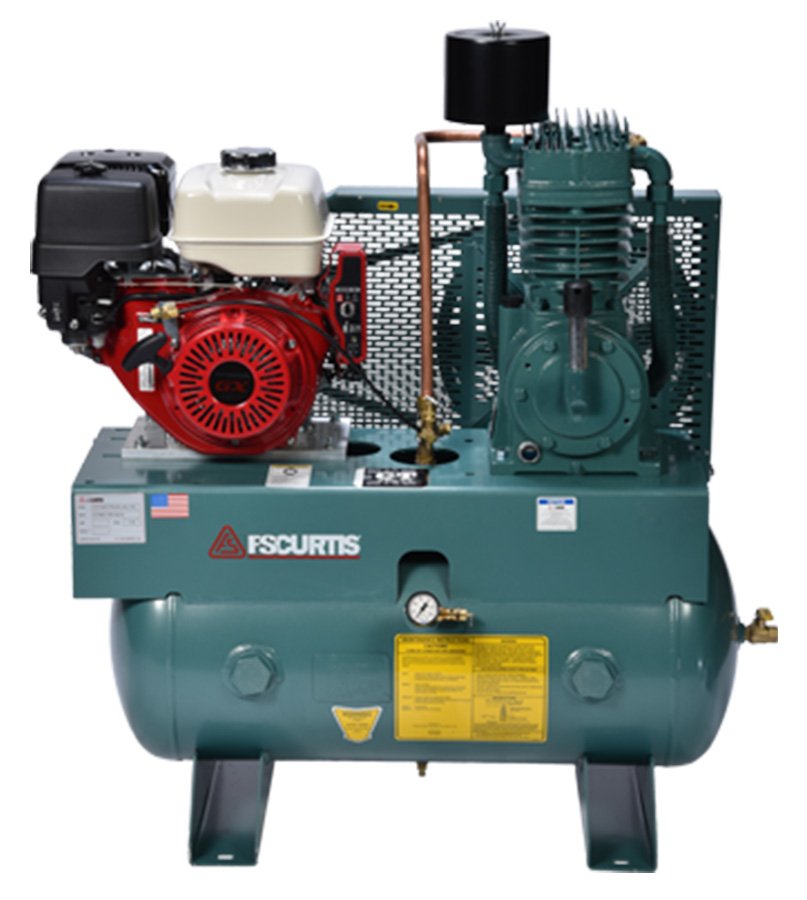

FS-Curtis CT Series Gas Powered Two Stage Piston Air Compressor
Compressor with Honda or Kohler engine for light automotive and industrial applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FS-Curtis CT Series gas powered two stage piston air compressor is designed with a Honda or Kohler engine and a two stage cast iron pump. The slow turning pump increases pump life and has deep-finned cast iron cylinders and heads for cool operation. The CT Series features a corrosion resistant ductile iron crankshaft, intercooler, precision-fit main roller bearings, metal intake filter/silencer, and a high-flow stainless steel channel valve system.
Overview and Features
Features
- 13 to 14 HP
- 24.8 to 25.4 CFM capacity
- 30 gallon tank
- 175 PSI working pressure
- 32 to 104°F
- Cast iron CT75 pump
- OSHA approved totally enclosed metal belt guard
- ASME approved air receiver
- 12V DC starter with alternator
- Engine idle control
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 13 HP, 14 HP |
| Capacity | 24.8 CFM, 25.4 CFM |
| Engine | Honda, Kohler |
