Quincy Compressor High Pressure Filter

Product overview

Built around your operating requirements.

Description

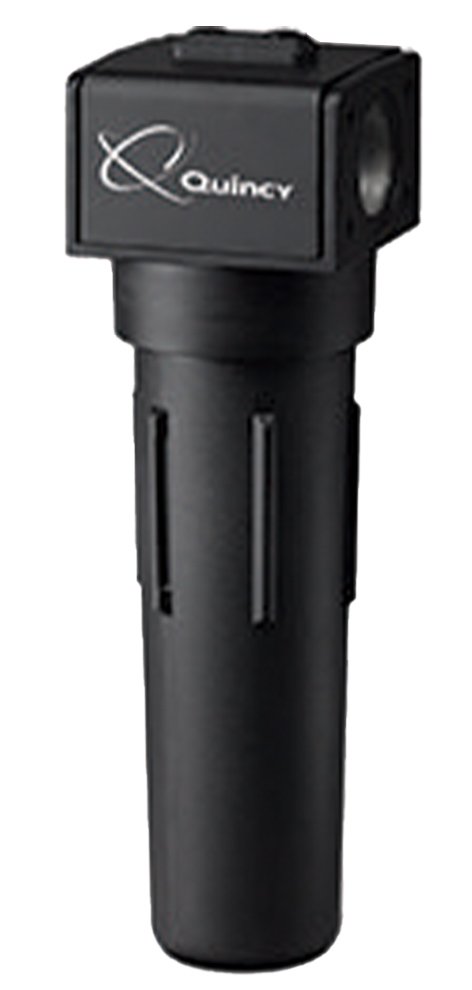

The Quincy Compressor High Pressure Filter is designed for pressures up to 5000 PSI and offer three levels of filtration. These filters offer an economic solution for air purification needs at high pressure. Aluminum housing is available for 750 PSI models and 316 Stainless Steel housing is available for 750, 1500, and 5000 PSI models.

Overview and Features

Features

750, 1500, or 5000 PSI
Aluminum or 316 stainless steel housing
Filter types:
- Standard coalescer
- Polishing coalescer
- Activated carbon
28 to 2050 SCFM capacities
250°F temperature rating

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Pressure Rating	750 PSI, 1500 PSI, 5000 PSI
Housing Material	Aluminum, Stainless Steel
Filter Type	HSCT standard coalescer - 1 micron particle, HPCT polishing coalescer - 0.01 micron particle, HACT activated carbon - 0.01 micron particle, 0.003ppm oil, SSCT standard coalescer - 1 micron particle, SPCT polishing coalescer - 0.01 micron particle, SACT activated carbon - 0.01 micron particle, 0.003ppm oil, ESCT standard coalescer - 1 micron particle, EPCT polishing coalescer - 0.01 micron particle, EACT activated carbon - 0.01 micron particle, 0.003ppm oil, VSCT standard coalescer - 1 micron particle, VPCT polishing coalescer - 0.01 micron particle, VACT activated carbon - 0.01 micron particle, 0.003ppm oil
Capacity	94 SCFM, 147 SCFM, 265 SCFM, 324 SCFM, 492 SCFM, 1015 SCFM, 1132 SCFM, 1882 SCFM, 28 SCFM, 60 SCFM, 65 SCFM, 67 SCFM, 120 SCFM, 150 SCFM, 185 SCFM, 200 SCFM, 270 SCFM, 300 SCFM, 310 SCFM, 400 SCFM, 445 SCFM, 600 SCFM, 700 SCFM, 775 SCFM, 1000 SCFM, 1050 SCFM, 1200 SCFM, 2000 SCFM, 2050 SCFM
Connection	1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT

Pressure Rating

750 PSI, 1500 PSI, 5000 PSI

Housing Material

Aluminum, Stainless Steel

Filter Type

HSCT standard coalescer - 1 micron particle, HPCT polishing coalescer - 0.01 micron particle, HACT activated carbon - 0.01 micron particle, 0.003ppm oil, SSCT standard coalescer - 1 micron particle, SPCT polishing coalescer - 0.01 micron particle, SACT activated carbon - 0.01 micron particle, 0.003ppm oil, ESCT standard coalescer - 1 micron particle, EPCT polishing coalescer - 0.01 micron particle, EACT activated carbon - 0.01 micron particle, 0.003ppm oil, VSCT standard coalescer - 1 micron particle, VPCT polishing coalescer - 0.01 micron particle, VACT activated carbon - 0.01 micron particle, 0.003ppm oil

Capacity

94 SCFM, 147 SCFM, 265 SCFM, 324 SCFM, 492 SCFM, 1015 SCFM, 1132 SCFM, 1882 SCFM, 28 SCFM, 60 SCFM, 65 SCFM, 67 SCFM, 120 SCFM, 150 SCFM, 185 SCFM, 200 SCFM, 270 SCFM, 300 SCFM, 310 SCFM, 400 SCFM, 445 SCFM, 600 SCFM, 700 SCFM, 775 SCFM, 1000 SCFM, 1050 SCFM, 1200 SCFM, 2000 SCFM, 2050 SCFM

Connection

1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT
