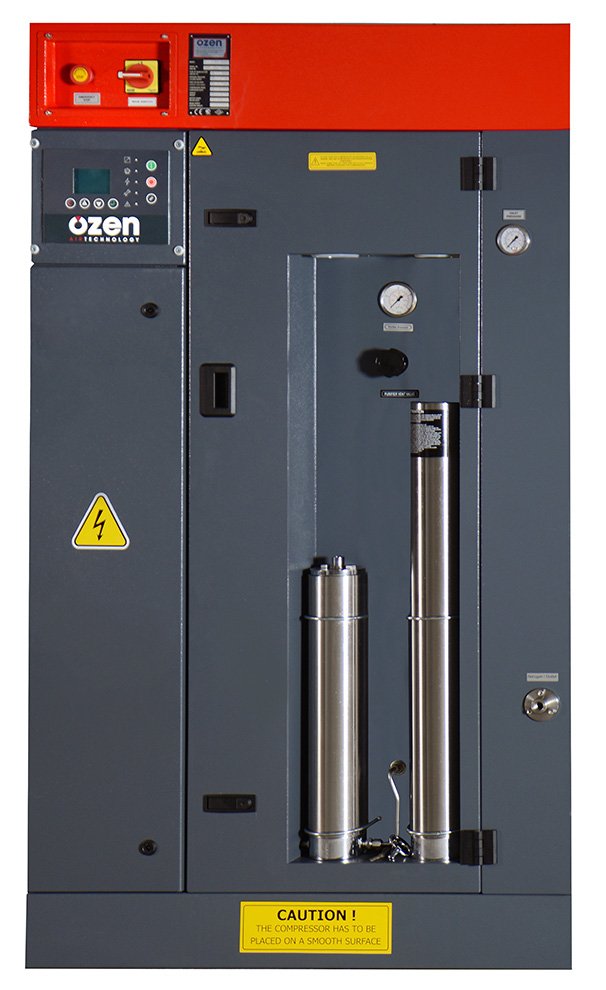

OZEN OABR III Reciprocating Booster
3 Stage, high pressure (5000 PSI) booster, belt drive, 15 or 20 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN OABR III Reciprocating Booster is a 3 stage, high pressure booster (up to 5000 PSI discharge pressure) that is belt driven and is available with a 15 or 20 HP TEFC premium efficient motor. The OABR III features a dual control system that allows it to operate in start/stop or idle modes, and the Maestro Q2 controller allows the user to monitor and maintain the equipment.
Overview and Features
Features
- 15 or 20 HP TEFC Premium Efficient Motor
- Belt drive
- 3 Stage
- Capacity (72 PSI inlet pressure):
- 15 HP: 24.1 ACFM at 5000 PSI discharge pressure
- 20 HP: 35.1 ACFM at 5000 PSI discharge pressure
- Splash lubricated
- Maestro Q2 controller
- Stainless Steel aftercooler and intercooler
- Stainless steel purifier filter
- Auto drain solenoid
- 460/3/60 voltage
- IP55 enclosure rating
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 15 HP, 20 HP |
|---|---|
| Capacity | 24.1 ACFM (72 PSI inlet, 5000 PSI discharge), 35.1 ACFM (72 PSI inlet, 5000 PSI discharge) |
| Voltage | 460/3/60 |
