Central Air Equipment

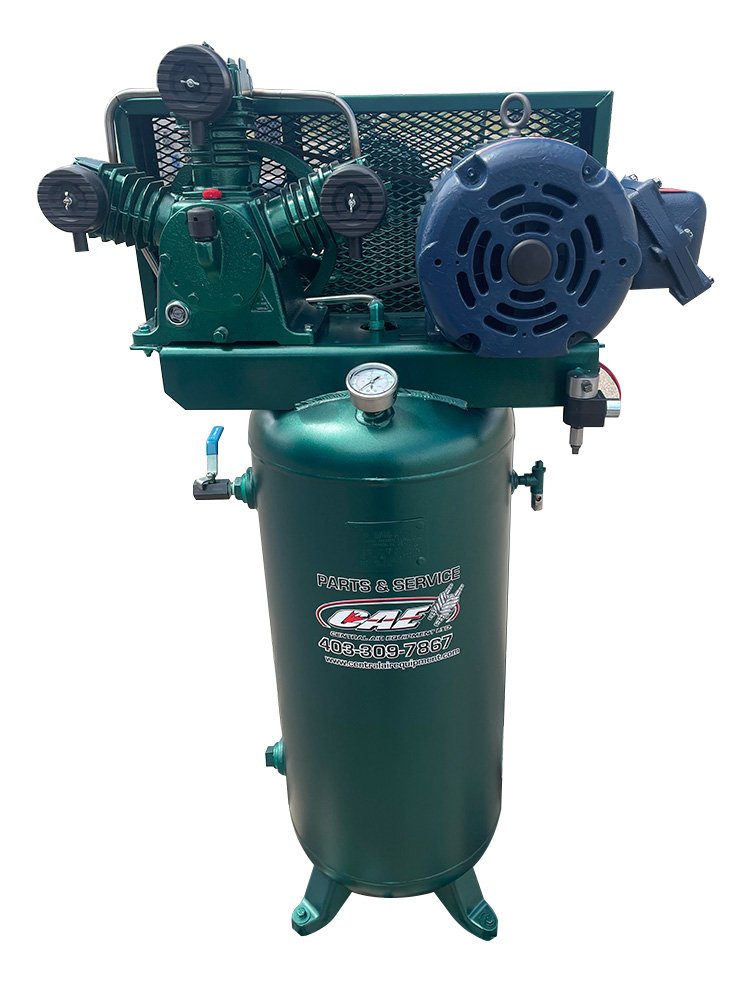

Central Air Equipment Hazardous Location Piston Air Compressor
0.75 to 7.5 HP tank mounted piston compressor approved for Class 1 Div 2 hazardous location use
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Central Air Equipment Hazardous Location Piston Air Compressor is designed for Class 1 Div 2 hazardous location use. Available in single-stage (0.75 to 3 HP) and two-stage (5 and 7.5 HP) with capacities from 4.05 to 23.6 CFM at 100 PSI. The single-stage models have a max pressure rating of 125 PSI and the two-stage models have a max pressure rating of 175 PSI.
Overview and Features
Features
- Single Stage Models:
- 0.75 HP: 4.05 CFM at 100 PSI, 125 PSIG max pressure
- 2 HP: 10.9 CFM at 100 PSI, 125 PSIG max pressure
- 3 HP: 17.7 CFM at 100 PSI, 125 PSIG max pressure
- Two Stage Models:
- 5 HP: 17.94 CFM at 100 PSI, 175 PSIG max pressure
- 7.5 HP: 23.6 CFM at 100 PSI, 175 PSIG max pressure
- All models are Class 1 Div 2
- 230/460/3/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.75 HP (single-stage), 2 HP (single-stage), 3 HP (single-stage), 5 HP (two-stage), 7.5 HP (two-stage) |
|---|---|
| Capacity (at 100 PSI) | 4.05 CFM, 10.9 CFM, 17.7 CFM, 17.94 CFM, 23.6 CFM |
| Tank Size and Orientation | 12 gallon, horizontal, 30 gallon, vertical, 80 gallon, vertical |
