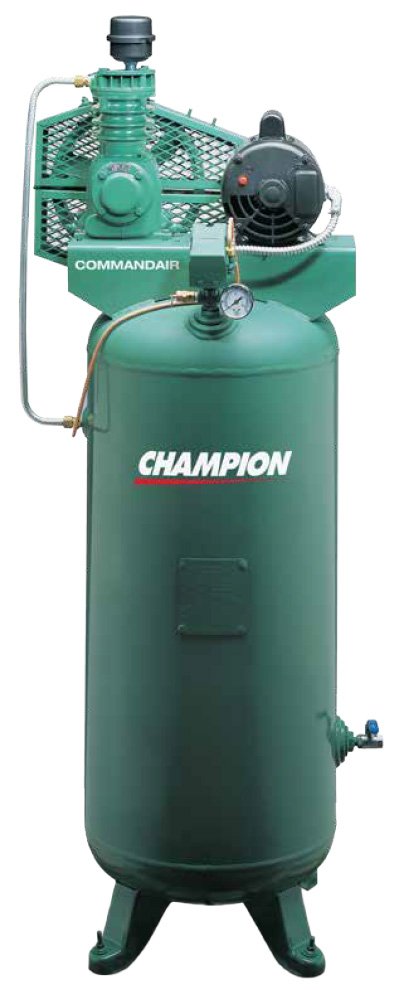

Champion CommandAir Series Piston Air Compressor
1/2 to 3 HP single stage, splash lubricated compressor, 1.8 to 10.2 CFM, 125 PSI max pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion CommandAir Series Piston Air Compressor is sized for smaller air requirements such as small industrial plants, schools, small automotive centers, and do-it-yourselfers. The single stage, splash lubricated compressor is available in 1/2 to 3 HP options with 1-phase and 3-phase motors.
Overview and Features
Features
- 1/2 to 3 HP
- 1.8 to 10.2 CFM
- Maximum Pressure 125 PSIG
- NEMA 1 Mounted Magnetic Starter (except 0.5 – 2HP with 1 phase 3600rpm motors)
- Start / Stop Pressure Switch Control
- Intake Filter / Silencer
- Enclosed Belt Guard
- Loadless Starting
- ASME coded receiver
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 1/2 HP, 3/4 HP, 1 HP, 1-1/2 HP, 2 HP, 3 HP |
|---|---|
| Capacity | 1.8 ACFM at 90 PSIG, 2.4 ACFM at 90 PSIG, 3.1 ACFM at 90 PSIG, 3.4 ACFM at 90 PSIG, 5.3 ACFM at 90 PSIG, 6.0 ACFM at 90 PSIG, 7.2 ACFM at 90 PSIG, 10.2 ACFM at 90 PSIG |
| Configuration | 30 gallon vertical tank mount, 30 gallon horizontal tank mount, 60 gallon horizontal tank mount |
| Voltage | 115/1/60, 208/1/60, 230/1/60, 208/3/60, 230/3/60, 460/3/60 |
| Tank Lining/Coating Options | None, Vinyl Lined Tank, Galvanized Tank |
| Additional Options | Automatic Tank Drain - Electric (comes with 6ft, 115v/1ph power cord), Automatic Tank Drain - Pneumatic, Vibration Isolators, Dual Control B1/B1S, Dual Control BVA/BVAS, Dual Control BWA, Hands-Off-Auto (NEMA 1): for Dual Control, Hands-Off-Auto (NEMA 4): for Dual Control, Off-On Switch (NEMA 1), Off-On Switch (NEMA 4), Massachusetts Fittings |
